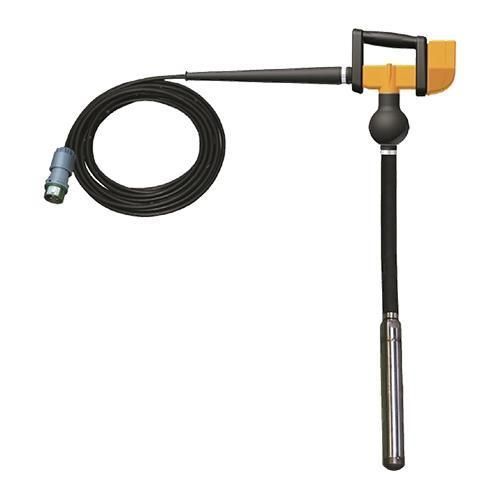

Electric concrete internal vibrator MP-AFP series

Product overview The MP-AFP PISTOL is a high-frequency internal poker with a pistol-grip control, part of the 42 V M-AFP family. It is designed for horizontal concrete vibration tasks such as slabs and floors, offering compact design, IP67 protection and low maintenance requirements.

Key features

• Watertight, abrasion-resistant switch box
• Integrated two-position switch on the handle for secure control
• Multiple shaft diameters available
• Optimized frequency and amplitude for concrete consolidation
• Current input protection against overheating
• Maintenance-free under normal operating conditions

Applications Suited for horizontal vibration of concrete elements (floor slabs, pavements, plinths) where ergonomic handling and high mobility are required. The pistol-grip version facilitates continuous use on extensive job sites and confined horizontal work zones.

Benefits

• INTENSIVE WORK: Provides stronger and more stable vibration than mechanical vibrators for demanding tasks
• ERGONOMIC: Pistol-grip handle improves handling and mobility on site
• HORIZONTAL WORK: Specifically adapted to horizontal consolidation of slabs and floors
• IP67 PROTECTION: Fully protected against dust and water ingress

Models / Options

• Available models: MP38 AFP, MPV38 AFP, MP5 AFP, MPV5 AFP, MP6 AFP, MPV6 AFP, MP7 AFP, MP3 AFP (and rubber-tip variants for select models)
• Diameter options: 30 mm, 38 mm, 50 mm, 58 mm, 66 mm
• Rubber tip: available on selected configurations
• VAS system: available on selectable models
• Voltage: 42 V (pistol versions belong to the 42 V M-AFP family)
• Optional accessories: extension cords 5 m, 10 m, 20 m, 25 m

Technical specifications

• Operating voltage: 42 V
• Operating frequency: 200 Hz
• Revolutions: 12,000 rpm
• Centrifugal force range: 120 kg – 700 kg depending on model
• Intensity range: 3.5 A – 22 A depending on model
• Length range: 353 mm – 412 mm depending on model
• Displacement (m³/h): 12 – 40 depending on model
• Weight range: 6.5 kg – 16 kg depending on model
• Protection class: IP67
• Switch box: watertight and abrasion-resistant; integrated double-position switch on handle
• Overheat protection on current input
