Voltage/current converter AFE series

high-frequencypowerrobust

Product description

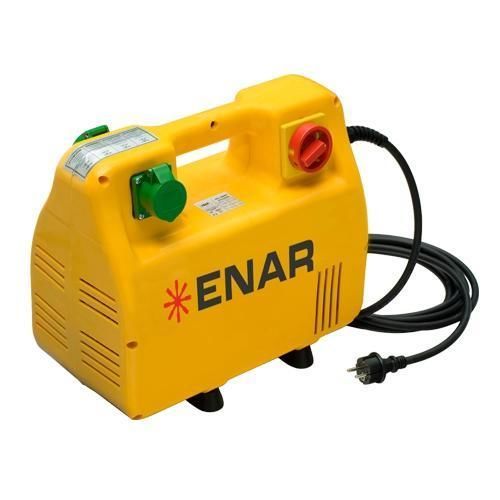

High-frequency converter for internal-motor concrete vibrators. AFE suitcase-type electric converters deliver safe, portable and reliable power on construction sites, allowing connection of one or two high-frequency pokers depending on the model.

Key features

• 5 m power cable.
• Brushless magnetic armature converters for durable operation.
• Thermal protection switch with overcurrent disconnection.
• Low safety output voltage: 42 V 3~200 Hz.
• Suitcase housing for impact protection and easy cleaning on site.
• Available with 1 or 2 outlets depending on model.

Benefits

• SAFETY: Low 42 V output voltage reduces the risk of electric shocks to operators.
• RELIABILITY: Protective switch disconnects the unit in case of overcurrent.
• PROTECTION: Enclosed housing shields electronics from impacts and concrete splashes.
• MOBILITY: Suitcase-style design eases transport between job sites.

Applications
AFE converters are designed for construction professionals who need to power internal-motor concrete vibrators on demanding job sites. The robust housing and configurable outputs make them suitable for casting, consolidation and onsite finishing tasks where safety and mobility are required.

Models / variants

• AFE 1000M
• AFE 2000
• AFE 2000M

Technical specifications

• AFE 1000M — Weight: 20 kg; Input power: 1.3 kW 6 A; Output power: 1.0 kVA 13 A; Outlets: 1; Input voltage: 230 V 1~50 Hz; Output: 42 V 3~200 Hz; Phase: single-phase.
• AFE 2000 — Weight: 29 kg; Input power: 2.8 kW 4 A; Output power: 1.6 kVA 23 A; Outlets: 2; Input voltage: 400 V 3~50 Hz; Output: 42 V 3~200 Hz; Phase: three-phase.
• AFE 2000M — Weight: 29 kg; Input power: 2.0 kW 9 A; Output power: 1.6 kVA 23 A; Outlets: 2; Input voltage: 230 V 1~50 Hz; Output: 42 V 3~200 Hz; Phase: single-phase.
