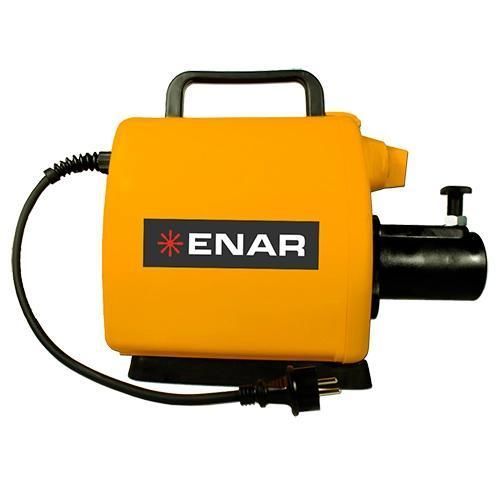

Single-phase motor VPA-H series

three-phase115 V100 V...240 V

Overview
The VPA-H is an electric vibratory motor designed to drive pendulum pokers and TNR-H pendular systems on construction sites requiring power, reliability and adaptability. It is compatible with multiple poker diameters and transmission lengths and can be supplied in single- or three-phase versions.

Key features

• Three-phase motor with clutch (also available in single-phase versions).
• Double-insulated motor construction.
• High-power design for continuous use on job sites.
• Protective housing for impact and splash resistance; easy to clean.
• Designed for minimal maintenance.

ANR / TNR range - performance highlights

• Shaft rotation frequency: 3,000 rpm.
• Pendulum system frequency at the poker tip: up to 12,000 rpm.
• Compatible with electric, diesel and petrol power units (depending on configuration).

Applications
Drive solution for pendular pokers used in concrete consolidation and formwork vibration on construction sites, suitable for contractors, rental fleets and precast plants where robustness and interchangeability of transmissions and pokers are required.

Benefits

• DURABILITY: motors sized for long duty cycles.
• VERSATILITY: multiple motor voltages and poker/transmission combinations.
• PROTECTIVE HOUSING: reduces downtime by shielding the motor from impacts and concrete splashes.
• LOW MAINTENANCE: limited need for spare parts or periodic interventions.

Motor VPA-H - Technical table
VPAM-H 230V | VPAME-H 115V
DIMENSIONS: 440 x 190 x 340 mm | 440 x 190 x 340 mm
FREQUENCY: 50 Hz | 50 Hz
POWER: 1.5 cv | 1.5 cv
MODEL: VPAM-H 230V | VPAME-H 115V
REVOLUTIONS (r.p.m): 3000 | 3000
VOLTAGE: 230V ~ 1 | 115V ~ 1
WEIGHT: 12 kg | 12 kg

TNR-H + ANR - Technical table
Variants: TNR-H 6-25 + ANR 25 | TNR-H 6-38 + ANR 38 | TNR-H 6-48 + ANR 48 | TNR-H 6-58 + ANR 58 | TNR-H 6-70 + ANR 70 | TNR-H 4-25 + ANR 25 | TNR-H 4-38 + ANR 38 | TNR-H 4-58 + ANR 58 | TNR-D 4-70 + ANR 70
DIAMETER: 25 mm | 38 mm | 48 mm | 58 mm | 70 mm | 25 mm | 38 mm | 58 mm | 70 mm
LENGTH: 6 m | 6 m | 6 m | 6 m | 6 m | 4 m | 4 m | 4 m | 4 m
PRODUCT: TNR-H 6-25 + ANR 25 | TNR-H 6-38 + ANR 38 | TNR-H 6-48 + ANR 48 | TNR-H 6-58 + ANR 58 | TNR-H 6-70 + ANR 70 | TNR-H 4-25 + ANR 25 | TNR-H 4-38 + ANR 38 | TNR-H 4-58 + ANR 58 | TNR-D 4-70 + ANR 70

Technical specifications

• Motor dimensions: 440 x 190 x 340 mm.
• Motor frequency: 50 Hz.
• Motor power: 1.5 cv.
• Motor revolutions: 3,000 r.p.m.
• Voltage options: 230V ~ 1 and 115V ~ 1.
• Motor weight: 12 kg.
• Shaft rotation: 3,000 rpm; pendulum frequency up to 12,000 rpm at the poker tip.
• TNR-H + ANR diameters: 25, 38, 48, 58, 70 mm; lengths: 4 m and 6 m.
