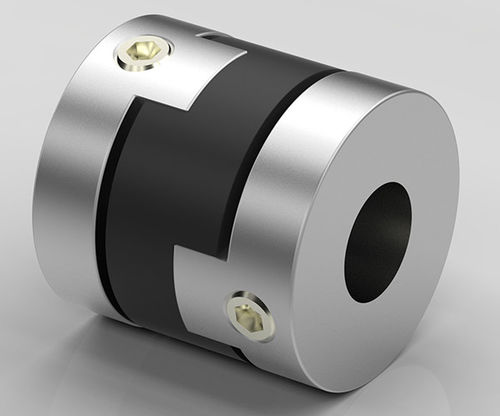

Oldham coupling EWOH Seriesshaftminiatureflange
Add to favorites
Compare this product
Characteristics
- Type
- Oldham
- Product applications
- shaft
- Other characteristics
- miniature
- Installation system
- flange
- Torque
Min.: 1 Nm
(0.7376 ft.lb)Max.: 15 Nm
(11.0634 ft.lb)- Rotational speed
Min.: 4,000 rpm
(25,132.74 rad.min-1)Max.: 8,000 rpm
(50,265.48 rad.min-1)
Description
Torques
1–15 Nm
Properties
miniature oldham coupling
low-cost version with set screws
for shaft diameter: 3–19 mm
Applications/Specific features
shaft-/shaft-connections
compensation of high radial shaft displacement
plug-in, hubs are in aluminium
• compensation of radial shaft displacement, pluggable
• EWOHC: standard version with radial clamping hub
• EWOH: cost-effective version with set screw
