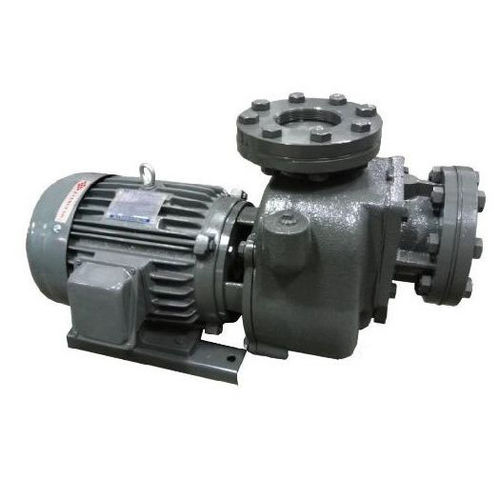

self-priming pump / water / slurry / electric
FK series

{{requestButtons}}

Characteristics

  • Media:

    water, slurry

  • Operation:

    electric

  • Priming:

    self-priming

  • Type:

    centrifugal

  • Domain:

    agriculture, for wastewater treatment

  • Other characteristics:

    with mechanical seals, close-coupled, high-efficiency, corrosion-resistant, small, transfer, sewage, irrigation, drainage, stainless steel

  • Flow:

    Min.: 0 m³/h (0 ft³/h)

    Max.: 87 m³/h (3,072.376 ft³/h)

  • Pressure:

    Min.: 0 bar (0 psi)

    Max.: 10 bar (145.038 psi)

  • Head:

    Min.: 0 m (0'00")

    Max.: 31 m (101'08")

  • Power:

    Min.: 0 kW (0 hp)

    Max.: 15 kW (20.39 hp)

Description

Close-coupled Self-priming Pumps
Spec

Type:Other
Key Features

Features: 1. Close-coupled design, small size, space-saver,high efficiency, easy maintenance. 2. Adopt high quality Mechanical seal, to ensure no leakage and extend life time. 3. Semi-open impeller design, suitable for sewage ,waste water, sludge drainage. 4. Great suction ability(Max.5M). Free install bottom valve. After initial priming water inside pump , the pump will auto-exhaust the air. 5. FKS Pump body/impeller/shaft are stainless steel material for better corrosion-resistant . Applications: Agriculture irrigation, transfer underground water,waste water treatment, water supply for factory,wastewater drainage in construction site. Operating Conditions: 1.Ambient Temp.: 0~40℃ 2.Liquid Temp.: 0~60℃ 3.Working Pressure: Max. 10 bar 4.Suction Lift: Max. 5M 5.Solid Passage: Max.5MM Specification: 1.Power: 1HP~15HP 2.Motor IP Protection: IP54 3.Motor Insulation: E,B,F Class 4.Pole: 2P 5.Voltage: 1 phase-110/220V*60HZ; 1 phase-220~240V*50HZ(Below 2HP) 3 phase 220~660V 6.Inlet/Outlet: 5”~ 4” 7.Max.Head: 31M 8.Max.Flow Rate: 1450LPM
