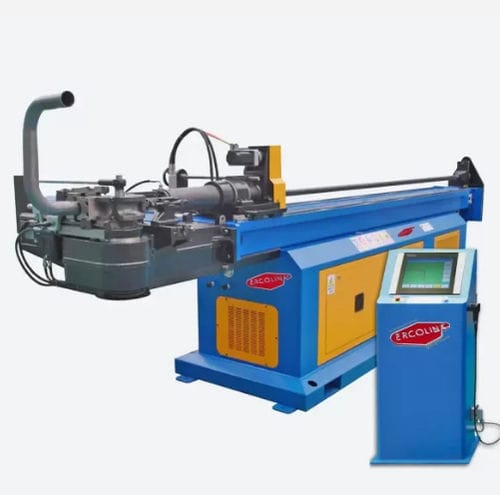

electro-hydraulic bending machine / for tubes / CNC / fully-automatic



  • Operation:


  • Product handled:

    for tubes

  • Other characteristics:

    CNC, fully-automatic, mandrel, XYZ

  • Bending radius:

    Min.: 20 mm (1 in)

    Max.: 254 mm (10 in)



CNC Mandrel Bender with Programmable Movement
CLR as small as 1.5D
Automatic bend sequencing
Independent pressure and clamp die adjustment
Interactive PLC touch screen offers easy access to auto and manual operating modes, system diagnostics and multiple language capability
Programmable material springback settings for each bend angle and distance between bends
Improved bend quality thanks to programmable mandrel extraction
USB for unlimited program memory storage and communication
Interactive touch screen displays absolute (ABS) or incremental (INC) positioning with inch or metric readout
Programmable carriage interference zone monitors position and eliminates possible collisions
Accepts YBC and XYZ input values
Auxiliary hydraulic oil cooling
Carriage with through spindle accepts longer material
