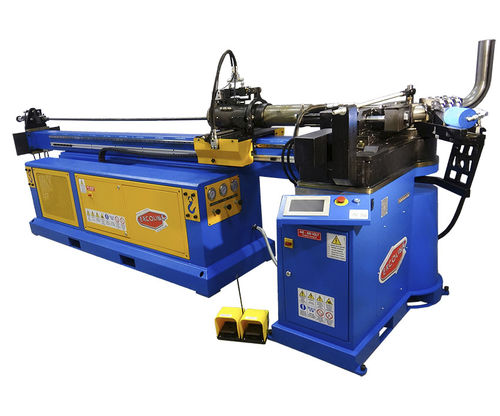

Electro-hydraulic bending machine TB80 A tubeNCdigital
Add to favorites
Compare this product
Characteristics
- Operation
- electro-hydraulic
- Product handled
- tube
- Control
- NC, digital
- Number of axes
- 4-axis
- Other characteristics
- mandrel
- Bending capacity
Max.: 76.1 mm
(3 in)Min.: 10 mm
(0.39 in)- Bending radius
Max.: 200 mm
(7.87 in)Min.: 10 mm
(0.39 in)- Overall length
542 cm
(213 in)- Overall width
126 cm
(50 in)- Total height
106 cm
(42 in)- Weight
910 kg
(2,006 lb)- Total power
2.2 kW, 3 kW
(3 hp, 4.1 hp)
Description
The TB80 A introduced on the market in October 2019 is an extraordinary mandrel bender which combines the undisputed power of the TB80 and exceptional bending ability. A great success created by Ercolina® .
FEATURES
TCPlus control
7″ color touch screen
Revamped icons for ease of use
Modes: manual, programming
Advanced OFFSET function
Immediate language change
Auto-tuning of major machine components
Programmable Bend Speed for each single bend of the program
Possibility of Limitless Programs on USB Port (optional)
Each single program can contain up to 30 bends.
VIDEO
Catalogs
No catalogs are available for this product.
See all of Ercolina‘s catalogsOther Ercolina products
Mandrel benders
