Electro-hydraulic bending machine EB33 FCNC7V1
tubefor pipeshorizontal

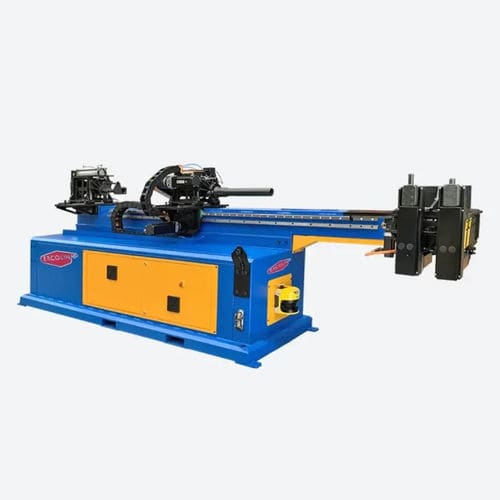

Electro-hydraulic bending machine - EB33 FCNC7V1 - Ercolina - tube / for pipes / horizontal
Electro-hydraulic bending machine - EB33 FCNC7V1 - Ercolina - tube / for pipes / horizontal
Electro-hydraulic bending machine - EB33 FCNC7V1 - Ercolina - tube / for pipes / horizontal - image - 2
Electro-hydraulic bending machine - EB33 FCNC7V1 - Ercolina - tube / for pipes / horizontal - image - 3
Electro-hydraulic bending machine - EB33 FCNC7V1 - Ercolina - tube / for pipes / horizontal - image - 4
Add to favorites
Compare this product
Go to the Ercolina website for more information

Characteristics

Operation
electro-hydraulic
Product handled
tube, for pipes
Displacement
horizontal
Control
CNC, automatic
Number of axes
11-axis
Other characteristics
precision, mandrel, mechanical, high-efficiency, cold, with multi-stack tooling
Bending capacity

Max.: 34 mm
(1.34 in)

Min.: 10 mm
(0.39 in)

Bending radius

Max.: 150 mm
(5.91 in)

Min.: 10 mm
(0.39 in)

Overall length

51 cm
(20 in)

Overall width

80 cm
(31 in)

Total height

157 cm
(62 in)

Weight

1,750 kg
(3,858 lb)

Total power

20 kW
(27.2 hp)

Tube diameter

Max.: 34 mm
(1.3 in)

34 mm
(1.3 in)

Min.: 10 mm
(0.4 in)

Description

The EB33 FCNC7V1 is a sensational machine, a new Ercolina® machine with 11 controlled axes. FEATURES Cantilever head Touch screen control Early core extraction in automatic cycle Individual speed control of the three axes and high precision of positioning dimensions 11 numerically controlled axes 2 pneumatic movements (collet closing and mandrel extraction) Importing .iges .dxf files 2-meter extension available Other supply tensions on request

Catalogs

No catalogs are available for this product.

See all of Ercolina‘s catalogs
Go to the Ercolina website for more information

Other Ercolina products

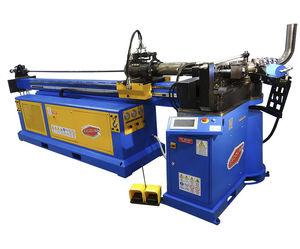

Mandrel benders
