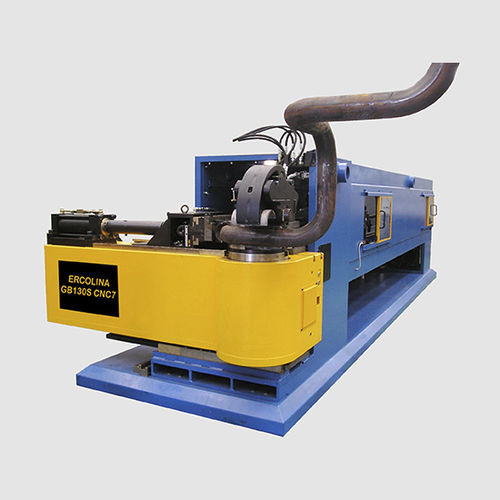

Electro-hydraulic bending machine GB130 tubefor pipeshorizontal
Add to favorites
Compare this product
Characteristics
- Operation
- electro-hydraulic
- Product handled
- tube, for pipes
- Displacement
- horizontal
- Control
- CNC, automatic
- Number of axes
- 6-axis
- Other characteristics
- mandrel, mechanical, 3-phase, high-efficiency, cold, multi-axis
- Bending capacity
Max.: 141.3 mm
(5.56 in)Min.: 30 mm
(1.18 in)- Bending radius
Max.: 450 mm
(17.72 in)Min.: 40 mm
(1.57 in)- Overall length
6,693 cm
(2,635 in)- Overall width
217 cm
(85 in)- Total height
179 cm
(70 in)- Weight
9,000 kg
(19,842 lb)- Total power
33 kW
(44.9 hp)- Tube diameter
Max.: 142 mm
(5.6 in)Min.: 30 mm
(1.2 in)
Description
The GB130 is the right machine for large diameters! Max loading capacity Ø 142, minimum bend radius 40mm with KST tube clamping system and real-time feasibility analysis with 3D simulation!
FEATURES
The control board allows you to program in “polar” and “Cartesian” mode
Adjustment of the springback setting for each bend.
USB PORT for unlimited saving of programs and information
Quick tool change system for greater productivity
Standard hydraulic fittings that allow you to mount the patented Ercolina hydraulic vice closing system (KST)
Interactive PLC with touch screen guarantees simple access to manual and
automatic operating modes; integrated system diagnostics and multilingual operator interface
Import of .iges .dxf .Tekla files (optional)
Wi-fi access
