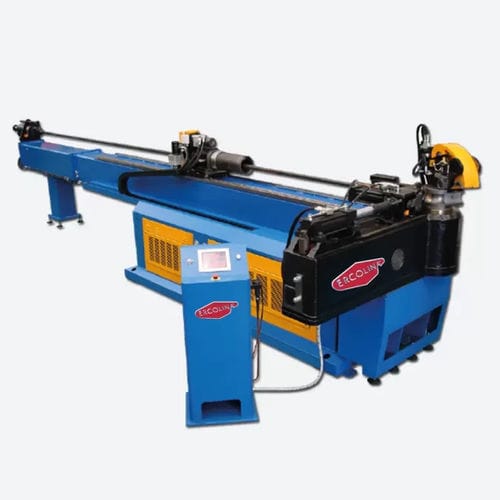

Electro-hydraulic bending machine GB100 SCNC6V3

tubefor pipeshorizontal

The GB100 SCNC6V3 has 6 programmable and hydraulically operated axes: carriage movement (Y1 axis), rotation of the bending plane (B axis), bending angle (C axis), lateral slide movement (X2 axis), booster (Y2 axis) and mandrel movement (Y3 axis). FEATURES Robust and rigid structure GS500 spheroidal cast iron head with high mechanical strength and guide system in innovative configurations (Patented) Compact and hard-wearing bending axis, with chain and cylinder, which ensures a constant bend speed for high performance and precision. Mandrel extraction system operated by a cylinder with the possibility of programming early mandrel extraction. Touch screen control with 3D visualization of the tube and collision prevention system for tube/machine, tube/floor, tube/external elements, and tube/tooling. 6 programmable and electro-hydraulically operated axes: carriage movement (Y1 axis) and rotation of the bending plane (B axis) via electric motors; bending angle (C Axis), lateral slide movement (X2 Axis), booster (Y2 Axis) and mandrel movement (Y3 Axis) are hydraulic. Wi-Fi kit 2-meter extension available (optional) Import of .iges .dxf .Iges Tekla format files (optional)
