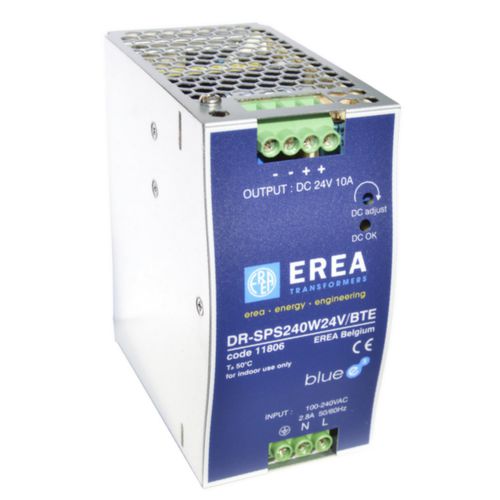

Electrical power supply transformer DR-SPS240W24V/BTEindustrialsingle-phaselow-voltage
Add to favorites
Compare this product
Characteristics
- Type
- electrical power supply
- Applications
- industrial
- Electrical characteristics
- single-phase, low-voltage
- Mounting
- DIN rail mount
- Other characteristics
- energy-saving, low-loss, switch-mode
- Electric power
240 W
- Primary voltage
Max.: 264 V
Min.: 90 V
- Secondary voltage
24 V
- Primary current
10 A
Description
Stabilized single-phase power supply Evolution adjustable for DIN-rail mounting - Energy-efficient - Upri [90-264V] 230V AC // Usec 24V DC - In 10A - P 240W
Electrical Characteristics
Power (VA): 240
Primary Voltage (Vac): 90...264Vac
Primary Voltage (Vdc): 127...370Vac
Secondary Voltage DC (Vdc): 24Vdc
Secondary Current DC (Adc): 10Adc
Frequency (Hz): 50-60
Efficiency (%): 89
DC power supply specifics
Ripple (and noise): 150mV
General properties
Standards
EN 55022 class B
EN 60950
EN 61000-3-2 class D
EN 61000-6-2
UL 508
Application: For all applications
IP degree: IP20
Max ambient temperature Ta (°C): 50
Mechanical Properties
Primary connection: Screw terminals
Secondary connection: Screw terminals
M (kg): 1,00
