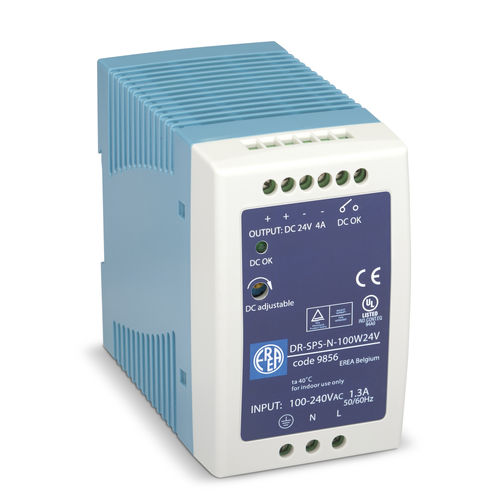

Electrical power supply transformer DR-SPS-N-100W24Vindustrialsingle-phaselow-voltage
Add to favorites
Compare this product
Characteristics
- Type
- electrical power supply
- Applications
- industrial
- Electrical characteristics
- single-phase, low-voltage
- Mounting
- DIN rail mount
- Other characteristics
- switch-mode
- Electric power
100 W
- Primary voltage
Max.: 264 V
Min.: 85 V
- Secondary voltage
24 V
- Primary current
4 A
Description
Stabilized single-phase Stab.Gleichsp.Vers. supply Narrow adjustable for DIN-rail mounting - Upri [85-264V] 230V AC // Usec 12V DC - In 4A - P 100W
Electrical Characteristics
Power (VA): 100
Primary Voltage (Vac): 230 (85...264)
Primary Voltage (Vdc): 120...370
Secondary Voltage DC (Vdc): 24Vdc
Secondary Current DC (Adc): 4Adc
Frequency (Hz): 50-60
Efficiency (%): 86
DC power supply specifics
Instelbaarheid output: Adjustable
Output adjustment range (VDC): 24...28
Ripple (and noise): 150mV p-p
Beveiliging: Zelfherstellende stroombegrenzing tegen overbelasting: 105-150%
General properties
Standards
EN 55022 class B
EN 60950
EN 61000-3-2 class D
EN 61000-6-2
UL 508
Application: Voor alle toepassingen
IP degree: IP20
Mechanical Properties
Primary connection: Screw terminals
Secondary connection: Screw terminals
