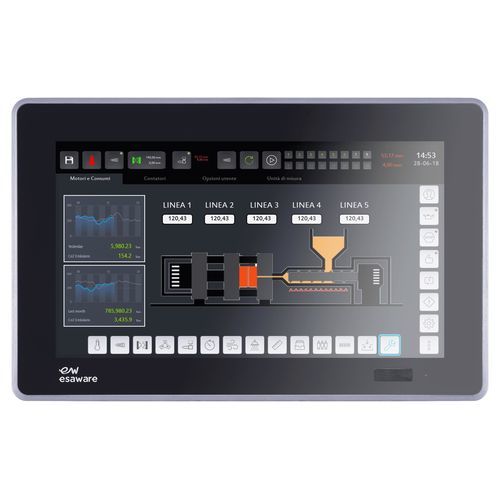

Multitouch screen panel PC EW seriesPCAP capacitive touch screen5-wire resistive touch screen15"
Add to favorites
Compare this product
Characteristics
- Screen type
- PCAP capacitive touch screen, multitouch screen, 5-wire resistive touch screen
- Display size
- 15", 21.5", 18.5", 12.1"
- Resolution
- 1920 x 1080, 1280 x 800, 1366 x 768
- Processor
- Intel® Celeron J1900, Intel Atom N2800, Intel® Core i5, Intel® Core i7, Intel® Core i3
- Construction
- fanless, aluminum frame, metal chassis
- Applications
- industrial
- Protection level
- IP66
- Other characteristics
- HMI, USB 2.0, Ethernet, RJ45
- Memory size
Min.: 4 GB
Max.: 32 GB
Description
Product overview
EW Panel IPCs (EW200 series) are industrial panel PCs designed for machine control, HMI and process visualization. Available with resistive or capacitive touchscreens and front protection to IP66, the series covers display sizes from 12.1" to 21.5" and multiple CPU platforms to fit varied automation requirements.
Main features
EW200 MITX - Technical table
Models: EW212 | EW215 | EW218 | EW222
Display Size: 12.1" | 15.6" | 18.5" | 21.5"
Display Technology / Resolution / Brightness / Contrast: TFT 1280×800 400cd/m² 1000:1 | TFT 1366×768 300cd/m² 500:1 | TFT 1366×768 300cd/m² 1000:1 | TFT 1920×1080 300cd/m² 5000:1
Touch Technology: Resistive (5‑wire) / Capacitive PCT (10 touches)
Bezel / Chassis: Aluminum with PTFE coating / Sheet steel
CPU options: Atom N2800 (fanless) | Celeron J1900 (fanless) | Intel Core i3/i5/i7 (fan) | Intel Celeron/Core 6G variants
RAM: Atom up to 4GB DDR3 | Celeron up to 8GB DDR3L | Core 3G up to 16GB DDR3 | Core 6G up to 32GB DDR4
I/O highlights: 2× RS232 + 1× RS232/422/485; front USB IP66 (1x, no capacitive); rear USB 2.0/3.0 mix; dual 1Gb RJ45 (Intel controllers variable); VGA/DVI/HDMI display outputs depending on CPU
Storage & expansion: HDD/SSD/CFast options, 1× external CFast slot, optional PCIe/miniPCIe/PCIe x16 slots; RAID 0/1 support
Power & environment: 18–30 Vdc (typical), consumption 25–65 W, operating -10…+50 °C (non‑condensing), storage -20…+65 °C
Protection & certifications: Front IP66; CE, EMC EN61000 series, EN60068 series, cULus, EAC; ATEX Group II Cat.3 GD Zone 2/22 options
EW200 SLIM - Technical table
Models: EW212 | EW215 | EW218 | EW222
Display Size: 12.1" | 15.6" | 18.5" | 21.5" — TFT, same resolutions as MITX variants
Backlight life: ~50,000 hours
Touch Technology: Resistive (5‑wire) / Capacitive PCT (10 touches)
Bezel / Chassis: Aluminum with PTFE coating / Sheet steel
CPU (examples): Celeron J1900 (fanless) | Celeron J3455 (fanless) | Intel Core U-series (i3/i5/i7) — low‑power fanless options depending on model
RAM & storage: on‑board and SODIMM variants (config dependent), mSATA/CFast options, RAID on select CPUs
I/O examples: RS232 + RS485, front USB IP66, dual Gigabit Ethernet (Intel controllers depending on CPU), DP/VGA outputs depending on CPU
Power & environment: 15–36 Vdc, consumption ~25–50 W, operating -10…+50 °C, storage -20…+65 °C, humidity up to 90% non‑condensing
Certifications: CE, EMC/EN standards, cULus, EAC; ATEX variants available
Technical specifications
EW Panel IPCs (EW200 series) are industrial panel PCs designed for machine control, HMI and process visualization. Available with resistive or capacitive touchscreens and front protection to IP66, the series covers display sizes from 12.1" to 21.5" and multiple CPU platforms to fit varied automation requirements.
Main features
- 16:9 TFT widescreen displays: 12.1", 15.6", 18.5", 21.5"
- Touch options: 5‑wire resistive or PCT capacitive (up to 10 touches)
- Aluminum bezel with PTFE non‑stick coating; front protection IP66
- Multiple CPU platforms: Atom, Celeron (J1900/J3455), Intel Core (various generations)
- Comprehensive I/O: USB 2.0/3.0, RS232/RS485, dual 1Gb Ethernet
- Optional expansion: PCIe/miniPCIe/CFast/mSATA; RAID 0/1 support
- Operating range: -10 to +50 °C; industrial certifications including ATEX Zone 2/22 options
EW200 MITX - Technical table
Models: EW212 | EW215 | EW218 | EW222
Display Size: 12.1" | 15.6" | 18.5" | 21.5"
Display Technology / Resolution / Brightness / Contrast: TFT 1280×800 400cd/m² 1000:1 | TFT 1366×768 300cd/m² 500:1 | TFT 1366×768 300cd/m² 1000:1 | TFT 1920×1080 300cd/m² 5000:1
Touch Technology: Resistive (5‑wire) / Capacitive PCT (10 touches)
Bezel / Chassis: Aluminum with PTFE coating / Sheet steel
CPU options: Atom N2800 (fanless) | Celeron J1900 (fanless) | Intel Core i3/i5/i7 (fan) | Intel Celeron/Core 6G variants
RAM: Atom up to 4GB DDR3 | Celeron up to 8GB DDR3L | Core 3G up to 16GB DDR3 | Core 6G up to 32GB DDR4
I/O highlights: 2× RS232 + 1× RS232/422/485; front USB IP66 (1x, no capacitive); rear USB 2.0/3.0 mix; dual 1Gb RJ45 (Intel controllers variable); VGA/DVI/HDMI display outputs depending on CPU
Storage & expansion: HDD/SSD/CFast options, 1× external CFast slot, optional PCIe/miniPCIe/PCIe x16 slots; RAID 0/1 support
Power & environment: 18–30 Vdc (typical), consumption 25–65 W, operating -10…+50 °C (non‑condensing), storage -20…+65 °C
Protection & certifications: Front IP66; CE, EMC EN61000 series, EN60068 series, cULus, EAC; ATEX Group II Cat.3 GD Zone 2/22 options
EW200 SLIM - Technical table
Models: EW212 | EW215 | EW218 | EW222
Display Size: 12.1" | 15.6" | 18.5" | 21.5" — TFT, same resolutions as MITX variants
Backlight life: ~50,000 hours
Touch Technology: Resistive (5‑wire) / Capacitive PCT (10 touches)
Bezel / Chassis: Aluminum with PTFE coating / Sheet steel
CPU (examples): Celeron J1900 (fanless) | Celeron J3455 (fanless) | Intel Core U-series (i3/i5/i7) — low‑power fanless options depending on model
RAM & storage: on‑board and SODIMM variants (config dependent), mSATA/CFast options, RAID on select CPUs
I/O examples: RS232 + RS485, front USB IP66, dual Gigabit Ethernet (Intel controllers depending on CPU), DP/VGA outputs depending on CPU
Power & environment: 15–36 Vdc, consumption ~25–50 W, operating -10…+50 °C, storage -20…+65 °C, humidity up to 90% non‑condensing
Certifications: CE, EMC/EN standards, cULus, EAC; ATEX variants available
Technical specifications
- Product family: IPC EW (EW200 series: EW212, EW215, EW218, EW222)
- Display formats: 12.1", 15.6", 18.5", 21.5" (16:9)
- Touch options: 5‑wire resistive or PCT capacitive (up to 10 touches)
- CPU platforms: Atom, Celeron (J1900/J3455), Intel Core (various generations)
- RAM: DDR3/DDR3L up to 16GB (3G) or DDR4 up to 32GB (6G) depending on platform
- Storage: HDD/SSD/CFast/mSATA with optional RAID 0/1
- I/O: multiple USB 2.0/3.0, RS232/RS485, audio, PS2 (platform dependent), front USB IP66
- Ethernet: 2× 1Gb RJ45 (Intel controllers variable)
- Video outputs: VGA / DVI‑D / DP / HDMI depending on CPU family
- Expansion: PCIe / miniPCIe / mechanical slots depending on platform
- Front protection: IP66
- Power input: wide VDC range (examples: 15…36 Vdc or 18…30 Vdc)
- Operating temperature: -10…+50 °C (non‑condensing); storage: -20…+65 °C
- Certifications: CE, EN61000 series, EN60068 series, cULus, EAC; ATEX options (Group II Cat.3 GD Zone 2/22)
- Typical consumption: ~25–65 W depending on size and platform
