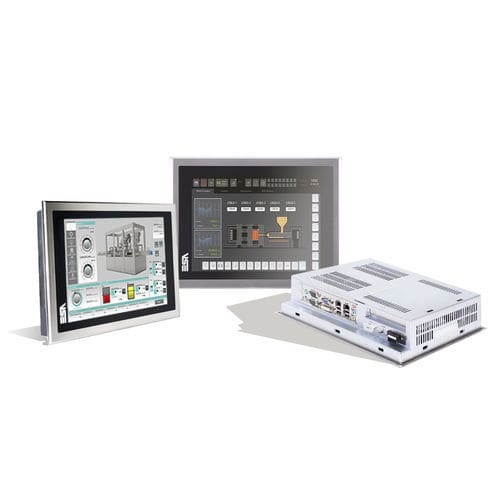

LCD monitor XM7 Inox

TFTresistive touch screenLED backlight

Product overview
The XM7 Inox series are stainless steel industrial monitors engineered for continuous operation in demanding industrial environments. Models available from 7" wide up to 19" provide certified compliance for food, pharmaceutical, chemical and hazardous-area applications.

Features

• ATEX compliance (Zone 2/22, Category 3 G/D) and environmental resistance per EN60068-2-6/27/30
• Complies with FDA 21 / EN1672-2 for food, pharmaceutical and chemical industries
• Wide range of LCD and touch options: 7" wide, 12.1", 15", 19"
• 4:3 LCD formats with LED backlight
• Multiple video inputs (VGA/DVI-I/S-Video/composite)
• Multi outputs for touch interfaces; analog resistive 4- or 5-wire options
• Stainless steel bezel (Inox V2A) with True Flat touchscreen option
• Front protection: IP69K on 7" and 12.1"; IP66 on 15" and 19"

Models technical table
Header: , XM7W7, XM712, XM715, XM719
Dimensions: 7" wide, 12.1", 15", 19"
Bezel: Inox V2A, 6 mm thickness for all models
Technology: TFT 262K colors | TFT 262K colors | TFT 16.2M colors | TFT 16.7M colors
Backlight: LED | LED | LED | LED
Brightness (cd/m2): 500 | 370 | 350 | 400
Contrast: 600:1 | 600:1 | 700:1 | 1000:1
Viewing angle H-V: 70-60 | 140-120 | 140-120 | 170-170
Lamp life (hours at 25°C): 50k | 50k | 50k | 50k
Resolution (pixel): 800 x 480 | 800 x 600 | 1024 x 768 | 1280 x 1024
Touch technology: Analog resistive (4 wires) | Analog resistive (5 wires) | Analog resistive (5 wires) | Analog resistive (5 wires)
RS232 / USB interface: Yes | Yes | Yes | Yes
USB frontal IP66 / USB rear (2.0): 1 x | 1 x | 1 x | 1 x
Green Led Power ON: 1 x | 1 x | 1 x | 1 x
VGA/DVI-I */S-Video/Video composite: 1 x (* digital signal only single-link) across models
External dimensions (WxHxD) (mm): 228 x 155 x 66.7 | 336 x 256 x 56.7 | 425 x 300 x 57.2 | 508 x 384 x 64.2
Cut-out dimensions (WxH) (mm): 219 x 145 | 321 x 240 | 393 x 275 | 477 x 353
Power supply (Vdc): 18…30 (max 50 W) for all models
Power consumption (W): 30 | 35 | 35 | 45
Operating temperature (°C): 0…+50 for all models
Storage temperature (°C): -20…+65 for all models
Humidity: up to 90% for all models
Weight (Kg): 3 | 5.0 | 7.0 | 10.5
Protection degree: IP69K front on 7"/12.1"; IP66 front on 15"/19"
Certifications: CE; ATEX 2014/34/EU Group II Category 3 G D Zone 2/22; EN60068-2-6/27/30; EN61000-6-2 (immunity); EN61000-6-4 (emission)

Characteristics / technical specifications

• Product family: XM7 Inox stainless steel industrial monitors
• Available sizes: 7" wide, 12.1", 15", 19"
• Bezel: Inox V2A, 6 mm thickness
• Display technology: TFT (262K to 16.7M colours depending on model)
• Backlight: LED (typical life 50,000 hours at 25°C)
• Brightness: 350–500 cd/m² depending on model
• Contrast ratio: 600:1 to 1000:1 depending on model
• Viewing angles: up to 170° H/V depending on model
• Resolutions: from 800 x 480 to 1280 x 1024 depending on model
• Touch: Analog resistive (4- or 5-wire options)
• Interfaces: RS232, USB (front IP66 / rear USB 2.0), VGA/DVI-I, S-Video, composite
• Power supply: 18…30 Vdc (max 50 W)
• Power consumption: 30–45 W depending on model
• Operating temperature: 0…+50 °C; Storage: -20…+65 °C
• Humidity: up to 90%
• Weight: from 3 kg to 10.5 kg depending on model
• Front protection degree: IP69K (7" and 12.1"); IP66 (15" and 19")
• Certifications: CE, ATEX 2014/34/EU Group II Category 3 G D Zone 2/22; EN60068-2-6/27/30; EN61000-6-2; EN61000-6-4
