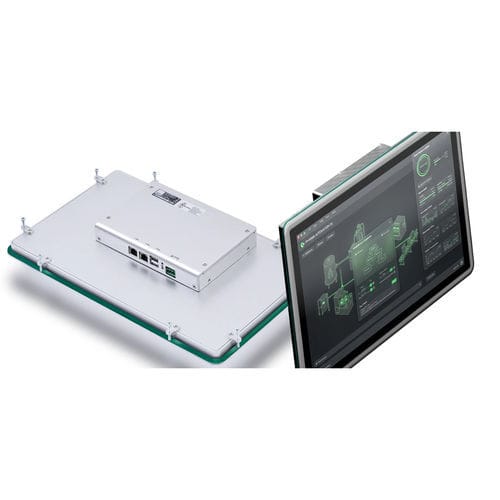

Multitouch screen panel PC LUMIA INOX

widescreencapacitive touch screenLED backlight

Product overview
LUMIA INOX is an AISI 316L stainless steel Panel PC platform designed for Food & Beverage and washdown industrial environments. Available in Panel and ARM configurations, it supports HMI, Monitor and Panel IPC variants to standardize hardware across machine architectures while ensuring hygienic surfaces and easy sanitation.

Key features

• AISI 316L stainless steel bezel and chassis with high corrosion resistance.
• 15.6″ and 21.5″ widescreen TFT displays with LED backlight and 16M colors.
• Capacitive multitouch technology with True Flat front for simplified cleaning.
• Front protection up to IP69K (panel) and IP66 for general washdown use.
• Multiple configurations: Edge/Web HMI (ARM), Panel IPC (Intel), Monitor.
• Wide operating temperature and industrial certifications (CE, UL/ATEX/IECEx on monitor variants).

Installation & User Interface

• Panel mounting with IP66/IP69K front protection depending on model.
• Optional accessories: PBOX push-button box for panel mounting.
• Control panel for parameter configuration without OS access; kiosk mode for full‑screen web visualization.
• Built-in Chromium browser for web-based HMI and visualization.

Technical highlights

• Display sizes: 15.6″ (1366×768 / 1920×1080) and 21.5″ (1920×1080).
• Processor options (Panel IPC): Intel Celeron J6412; Intel Core i3-1115G4; Intel Core i7-1165G7. (Edge/Web HMI: RK3399).
• Memory & storage: RAM from 2GB (HMI) up to 32GB (IPC); storage from 16GB eMMC to 1TB SSD.
• Connectivity: Gigabit Ethernet, Wi‑Fi (HMI), multiple USB ports, optional COM (RS232/RS485).
• Power: 12–32 V DC; consumption approx. 18W–50W depending on model and size.
• Operating temp.: -10 … +65 °C (model dependent); protection: IP66/IP69K front; certifications: CE (plus UL/ATEX/IECEx on specific monitors).
