Capacitive touch screen HMI LUMIA INOX

arm-mounted1920 x 1080Arm® Cortex®-A72 Dual-core

Product overview

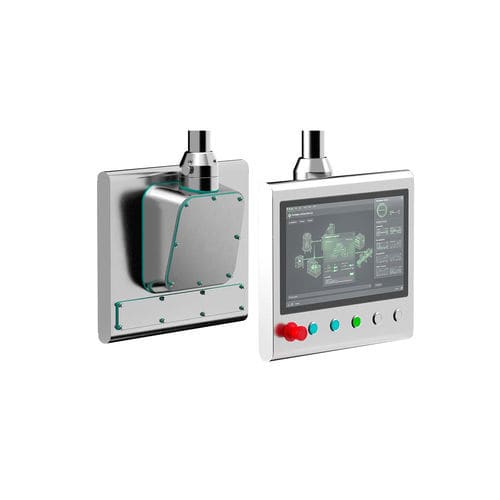

The LUMIA ARM INOX family includes arm-mounted operator terminals and industrial monitors in 316L stainless steel, designed for installation on pulpits or control stations. Available in edgeHMI / webHMI and Monitor versions with IP66 protection across the entire product, including the mounting arm.

Features (general)

• 316L stainless steel construction, IP66 all around
• Arm mounting system for pulpits or control stations
• User-configurable arm with broad component catalogue
• Optional IP66-rated USB port on rear cover
• Hard-wired slots for controls and indicators (up to 10 on edgeHMI, up to 6 on Monitor)
• Available with or without front-mounted control slots (Monitor/edge variants)

LUMIA ARM edgeHMI / webHMI - key features
Embedded edgeHMI models use fanless RockChip multicore processors for sustained performance and reduced dust-related maintenance. Two independent LAN ports permit OT/IT separation. KREO runtime is preinstalled for multi-client IIoT applications; a webHMI option provides a Chromium full-screen browser.

• Linux Debian 11 OS (edge/webHMI)
• 16:9 high-brightness displays: 15.6 in (1920 x 1080) or 21.5 in (1920 x 1080)
• Full-glass true flat front with capacitive touch
• IP66-rated arm mounting all around
• 2 independent LAN ports (OT/IT separation)
• 2 USB ports (one optional rear IP66 port)
• Up to 10 hard-wired slots for controls, lamps, selector switches, emergency button
• RockChip multicore processors (example RK3399)

LUMIA ARM Monitor - key features
The Monitor variant offers wide video input compatibility for industrial PCs and capacitive multi-touch via rear USB-B for gesture support in modern supervision and control applications.

• 16:9 high-brightness displays: 15.6 in (1920 x 1080) or 21.5 in (1920 x 1080)
• Full-glass true flat front with multi-touch capacitive technology
• IP66-rated arm mounting all around
• User-configurable arm with extensive component catalogue
• Up to 6 hard-wired slots for controls, lamps, selectors, emergency button
• Available also without buttons
• Optional IP66-rated rear USB port

Technical data — LUMIA ARM EDGE/WEB HMI (excerpt)
O.S.: Linux Debian 11 + Chromium (webHMI option)
Display Size: 15.6 in (1920 x 1080) / 21.5 in (1920 x 1080)
Display technology: TFT, LED backlight, 16M colors
Touch: Capacitive
Bezel / Chassis: Stainless steel 316L
Processor: RK3399 (Dual-core Cortex-A72 + Quad-core Cortex-A53) example
RAM: 2 GB DDR4
Mass storage: 16 GB eMMC
Ethernet: 1 x 1Gb + 1 x 100Mb
USB: 1 x 2.0 + 1 x 3.0 (rear USB optional IP66)
Power supply: 12 – 32 V DC
Consumption: ~18W (15.6 in edgeHMI) / ~28W (21.5 in edgeHMI)
Operating temperature: 0 … +50 °C
Storage temperature: -20 … +60 °C
Humidity: <90% non-condensing
Protection degree: IP66 all around
Certifications: CE; UL 61010; ATEX / IECEx entries as specified for each model

Technical data — LUMIA ARM MONITOR (excerpt)
Display technology: TFT, LED backlight, 16M colors
Display Size: 15.6 in (1920 x 1080) / 21.5 in (1920 x 1080)
Touch Technology: Capacitive multi-touch (via rear USB-B)
Bezel / Chassis: Stainless steel 316L
Video input: DVI-D, VGA, DisplayPort
USB: Rear 1 x USB type B (touch) / optional rear IP66 USB
Power supply: 12 – 32 V DC
Consumption: ~35W (15.6 in Monitor) / ~50W (21.5 in Monitor)
Operating temperature: 0 … +50 °C
Storage temperature: -20 … +60 °C
Humidity: <90% non-condensing

Additional notes
EdgeHMI models ship with KREO runtime preinstalled; webHMI uses Chromium in full-screen. Fanless RockChip processors help reduce dust buildup and maintenance. Dual LAN ports support OT/IT network segregation.

Technical specifications

• Model family: LUMIA ARM INOX
• Construction: 316L stainless steel chassis and mounting components
• Protection: IP66 around the entire product (including arm)
• Display sizes: 15.6 in and 21.5 in (1920 x 1080)
• Touch: Capacitive (single or multi-touch depending on variant)
• Processor (edgeHMI example): RK3399 family
• OS (edge/webHMI): Linux Debian 11 (+ Chromium for webHMI)
• Memory/storage (edgeHMI example): 2 GB DDR4; 16 GB eMMC
• Network: 2 LAN ports (1x1Gb + 1x100Mb) for OT/IT separation on edgeHMI
• USB: variants depending on model; rear USB-B for Monitor touch
• Video inputs (Monitor): DVI-D, VGA, DisplayPort
• Slots for controls: up to 10 (edgeHMI) / up to 6 (Monitor)
• Power: 12 – 32 V DC
• Power consumption examples: 18–50 W depending on model and size
• Operating/storage temperatures and humidity as listed above
• Certifications: CE, UL 61010, ATEX and IECEx entries where applicable
