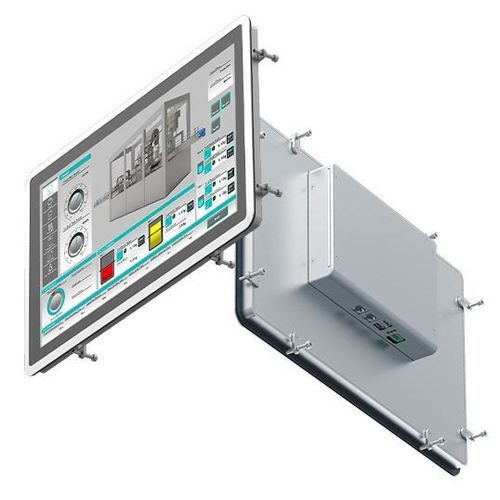

Touch screen HMI LUMIA

capacitive touch screenpanel-mount1366 x 768

Overview
Lumia Edge/Web HMI redefines industrial data presentation with an open, flexible, scalable and secure web-native approach. Accessible from standard browsers without plug-ins, the product supports both Windows and Linux environments and delivers sharp, responsive SVG-based graphics across orientations and resolutions. Security benefits from the continuous updates of mainstream web technologies.

Key features

• Operating system: Linux Debian 11 (embedded platform supports Debian 10/11)
• Display: High-resolution, high-brightness wide screens available in 7″, 10.1″, 15.6″, 21.5″ and 27″ formats
• Design: Full glass front with capacitive touch
• Processor: Fanless Rockchip RK3399 – RK3568 (RK3568 for Lumia107)
• Connectivity: Integrated dual-band client WiFi (2.5 GHz – 5 GHz), Ethernet ports (1×1 Gb + 1×100 Mb or 2×1 Gb for Lumia107), USB ports (1× USB3.0 + 1× USB2.0)
• Memory: RAM options 2 GB DDR4 – 4 GB DDR4 (Lumia107); 16 GB internal eMMC
• Installation: Panel mounting with IP66 front protection (IP66 front - UL Type 4X and Type 12)
• Accessories: Optional PBOX keypad (panel mounting)
• User interface: Control panel for programming parameters without OS access
• Display behaviour: Web pages auto-launch in full-screen (KIOSK MODE) to prevent operator access to the OS
• Browser: Chromium-based rendering for web pages

Embedded platform - table (selected rows)
O.S.: Linux Debian 10/11
Application software: Kreo HMI
Display Size: 7″ (1024 x 600); 10.1″ (1280 x 800); 15.6″ (1366 x 768 and 1920 x 1080); 21.5″ (1920 x 1080); 27″ (1920 x 1080)
Display technology: TFT
Display Backlight: LED
Display Colors: 16M
Touch Technology: Capacitive
Bezel / Chassis: Aluminium
Processor: RK3399 (Dual-core Cortex-A72 + Quad-core Cortex-A53) and RK3568 (Lumia107) (Quad-core Cortex-A55)
RAM: 2 GB DDR4; 4 GB DDR4 (Lumia107)
Mass storage: 16 GB eMMC
Ethernet Port: 1×1 Gb + 1×100 Mb (standard); 2×1 Gb (Lumia107)
WiFi: 2.5 / 5 GHz support (client)
USB Port: 1× USB3.0 + 1× USB2.0
Power Supply (Vdc): 12–32 V DC
Consumption (W): 10 W (7″), 12 W (10.1″), 18 W (15.6″), 28 W (21.5″), 28 W (27″)
Operating temperature: -10° ~ 60° C
Storage Temperature (°C): -20° ~ 70° C
Humidity: <90% (non condensing)
External dimensions (W/H/D) (mm): 7″ (191.6 x 121.6 x 34.5); 10.1″ (269 x 190 x 42); 15.6″ (402.4 x 251.7 x 45); 21.5″ (546.4 x 337.9 x 50.5); 27″ (panel 669 x 406 x 50.5)
Cut-out dimensions (W/H) (mm): 7″ (180 x 112); 10.1″ (258.5 x 179.5); 15.6″ (390 x 239); 21.5″ (531 x 323); 27″ (652 x 389)
Weight (kg): 7″ 2 kg; 10.1″ 5 kg; 15.6″ 6.5 kg; 21.5″ 8 kg; 27″ 10 kg
Protection degree: IP66 front - UL Type 4X and Type 12
Certifications: CE - RED (2014/53/EU); Safety: EN 62368-1:2020 + A11:2020; Health: EN 62311:2020; EMC: ETSI EN 301 489-1 V2.2.3:2019; ETSI EN 301 489-17 V3.2.4:2020; Radio: ETSI EN 300 328 V2.2.2:2019; ETSI EN 301 893 V2.1.1:2017; UL 61010; ATEX: II 3G Ex ec IIC T6 Gc X and II 3D Ex tc IIIC T75°C Dc IP66 X; IECEx: Ex ec IIC T6 Gc X and Ex tc IIIC T75°C Dc IP66 X; IECEx TUR 23.0004 X; DNV

Technical specifications

• Product family: LUMIA Edge / Web HMI
• Operating system (embedded): Linux Debian 10/11
• Application software: Kreo HMI
• Display sizes and resolutions: 7″ (1024×600), 10.1″ (1280×800), 15.6″ (1366×768 or 1920×1080), 21.5″ (1920×1080), 27″ (1920×1080)
• Display tech: TFT LED backlight, 16M colors, capacitive touch
• Housing: Full glass front, aluminium bezel
• Processors: RK3399 (Dual-core A72 + Quad-core A53) and RK3568 (Quad-core A55, Lumia107)
• RAM / Storage: 2 GB or 4 GB DDR4; 16 GB eMMC
• Network: WiFi dual-band (2.5/5 GHz client); Ethernet 1×1 Gb + 1×100 Mb or 2×1 Gb (Lumia107)
• I/O: 1× USB 3.0, 1× USB 2.0
• Power: 12–32 V DC; consumption varies by size (10 W–28 W)
• Operating / storage temp: -10° to 60° C operating; -20° to 70° C storage
• Humidity: <90% non-condensing
• Mechanical: External and cut-out dimensions per display size; weights per size
• Front protection: IP66; UL Type 4X / Type 12
• Modes: Edge HMI and Web HMI selectable on the same panel; KIOSK MODE full-screen web display
• Browser: Chromium for web rendering
• Optional accessories: PBOX keypad for panel mounting
• Certifications & approvals: CE-RED, EN 62368-1, EN 62311, ETSI EN 301 series, UL 61010, ATEX, IECEx, DNV
