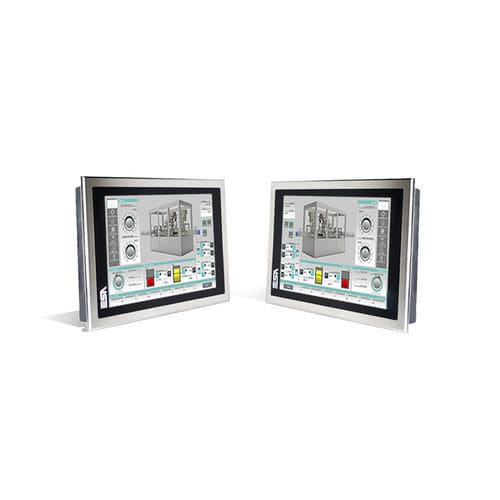

Panel PC with touch screen XS7 INOX

resistive touch screenTFT LCDLED backlight

Product overview
XS7 Inox panel PCs feature a 6 mm stainless‑steel front bezel and True‑Flat touch options to meet industrial protection and hygiene requirements. Models cover 12.1" to 19" displays and are available in fan‑cooled and fanless variants.

Features

• Display sizes: 12.1" – 19" with TFT / LED backlight.
• Stainless‑steel 6 mm seamless front bezel (INOX) with no frontal LED or USB.
• Flexible configurations: HDD/SSD, mSATA/CFast options, PCI/PCIe expansion, multiple CPU families and RAM options.

Additional features

• True‑Flat frontal touch screen (analog resistive 5‑wire).
• Removable HDD/SSD and optional external DVD‑RW.
• RAID support (2×HDD) and multiple OS options (various Windows Embedded / Windows versions).

XS7 Dinamic iCore (comparative table)
Models: XS712 | XS715 | XS719
Display Size: 12.1" SVGA - 12.1" XGA | 15" | 19"
Bezel: 6 mm smooth seamless inox frame with True‑Flat touch; no LED/USB on front (all models).
Technology / Colors / Backlight: TFT / 16.7M colors / LED (all models).
Backlight life (25 °C): 50,000 h (all models).
Resolution: 800×600 (SVGA) - 1024×768 (XGA) | 1024×768 | 1280×1024.
Touch type: Analog resistive (5‑wire) (all models).
CPU (Fan Intel® Core™ 2G / 6G): various iCore options; RAM up to 16GB DDR3 (iCore 2G) or up to 32GB DDR4 (iCore 6G).
Chipset: QM67PCH / Q170; DMI: DMI 5GT/s – DMI3 8GT/s (iCore 6G).
Storage: internal 2.5" SATA HDD (min. 500 GB) or SSD; removable HDD/SSD; RAID 2×HDD supported; optional CF/CFast/mSATA.
Slots & expansion: PCI / 2×PCI / PCIe x1 / PCIe x16 options; mPCIe slots (iCore 6G); optional Wi‑Fi (PCIe).
I/O: RS232 2×, RS485 1×, USB rear (config dependent 2.0/3.0), 2× 1Gb Ethernet (Intel/Realtek variants), video DVI‑D/VGA or DVI‑D/HDMI depending on CPU, audio ports.
Dimensions (W×H×D mm): 336×256×81 | 425×300×85.5 | 508×384×92.5. Cut‑out (W×H mm): 320×240 | 393×275 | 477×355.
Power supply: 18…30 Vdc; max power by model 75 W / 85 W / 95 W. Power consumption (24 Vdc, basic, no PCI cards): 48/58 | 55/65 | 67/77 W.
Protection: IP69K (XS712) or IP66 frontal (XS715, XS719). Operating temperature: 0…+50 °C. Storage: -20…+65 °C. Humidity: up to 90%. Weight approx.: 5 | 6.5 | 11 kg.
Certifications: CE; ATEX 2014/34/EU Group II Category 3 G D Zone 2/22; environmental and EMC standards as specified.

XS7 Fanless (comparative table)
Models: XS712 | XS715 | XS719
Display Size: 12.1" SVGA - 12.1" XGA | 15" | 19"
Bezel & touch: 6 mm inox front bezel with True‑Flat touch; no frontal LED/USB (all models).
Technology / Colors / Backlight / Life: TFT / 16.7M / LED / 50,000 h (all models).
Resolution: 800×600 - 1024×768 | 1024×768 | 1280×1024.
Touch type: Analog resistive (5‑wire).
CPU options: Atom Dual Core N2800 or Celeron J1900 depending on configuration (all models).
Memory: Atom up to 4GB DDR3; Celeron up to 8GB DDR3L. Drives: min. 500 GB SATA 2.5" / SSD options; CF/CFast/mSATA options per configuration.
I/O & expansion: RS232 2×, RS485 1×, USB rear (config dependent), 2× 1Gb Ethernet (Intel variants), PCI/PCIe slot options, mini/mPCIe slots, optional Wi‑Fi.
Dimensions / Cut‑out / Power / Protection / Temp / Weight: same values as Dinamic iCore table; power consumption (24 Vdc, basic, no PCI cards): 36 | 43 | 55 W for XS712/XS715/XS719 respectively. Protection: IP69K (XS712) or IP66 frontal (XS715/XS719).

Technical specifications

• Series / models: XS7 Inox (XS712, XS715, XS719).
• Brand: Esa Automation.
• Display sizes: 12.1", 15", 19"; True‑Flat analog resistive touch.
• Front bezel: 6 mm seamless stainless steel (INOX), no frontal LED/USB.
• Storage: 2.5" SATA HDD / SSD, removable HDD/SSD, optional CF/CFast/mSATA; RAID 2×HDD supported.
• CPU platforms: Atom, Celeron, Intel® Core (various generations and TDPs).
• Memory: platform dependent (Atom up to 4GB; Celeron up to 8GB; iCore up to 16/32GB).
• Expansion: PCI / PCIe / mini‑PCIe / mPCIe slots; optional Wi‑Fi.
• Interfaces: RS232/RS485, multiple USB (rear), 2× 1Gb Ethernet, audio, DVI‑D/VGA/HDMI (depending on CPU).
• Power: 18…30 Vdc; model dependent max power and consumption figures as listed.
• Protection & environment: IP69K or IP66 frontal; operating 0…+50 °C; storage -20…+65 °C; humidity ≤90%.
• Weight: approx. 5–11 kg depending on model.
• Certifications: CE, ATEX (Group II Cat. 3 G D Zone 2/22), applicable EN standards for environment and EMC.
