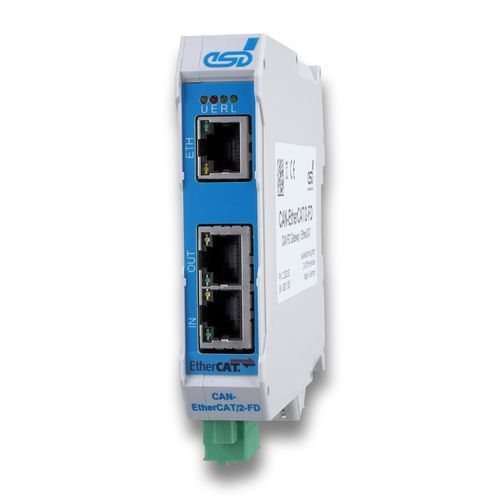

Communication gateway CAN-EtherCAT/2-FD

industrialEthernetCANbus

Gateways for connecting EtherCAT® with CAN FD and CAN CC EtherCAT to CAN FD Gateway as a stand-alone Module Solution • Seamless Connection between EtherCAT and CAN FD • Reducing the data load by filtering CAN messages internally at the gateway • Balancing different timings between EtherCAT and CAN using RX and TX message queues • Robust in use thanks to the galvanically isolated CAN interface • Also available as CAN classic (CAN CC) only variant • Further development of the proven CAN-EtherCAT User-Friendly Configuration • Simple configuration via EtherCAT MainDevice and standard EtherCAT configuration tools (e.g. esd EtherCAT Workbench) • EtherCAT SubDevice functionality according to ETG.5001 (CAN Interface - Module Profile No. 5000) EtherCAT Network Extension • Connecting Ethernet devices to EtherCAT via Ethernet-over-EtherCAT (EoE) support • Fast boot time (<1 s) and low power consumption (<2 W) thanks to the optimized selection of components
