2 Channel PCI-CAN FD Interface

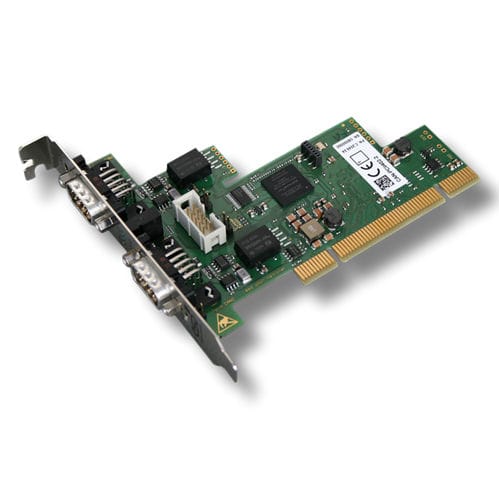

The CAN-PCI/402-2-FD is a PC board designed for the PCI bus that features two electrically isolated high-speed CAN FD interfaces according to ISO 11898-1:2015.
The CAN FD interfaces are driven by the ISO 16845:2004 certified esdACC (esd advanced CAN Core) implemented in the Altera® FPGA.
The FPGA supports bus mastering (firstparty DMA) to transfer data to the host memory. This results in a reduction of overall latency on servicing I/O transactions in
particular at higher data rates and a reduced host CPU load.
Due to the usage of MSI (Message Signaled Interrupts) the CAN-PCI/402-2-FD can be operated for example in Hypervisor environments.
The CAN-PCI/402-2-FD provides high resolution hardware timestamps.
Wide Range of Operating System Support and Advanced CAN Diagnostic:
• Software drivers for Windows® and Linux® included free of charge
• Optional CAN layer 2 software drivers for real-time operating systems
• CANopen®, J1939 and ARINC 825 protocol libraries
• ISO 16845:2004 certified esd Advanced CAN Core (esdACC) technology
