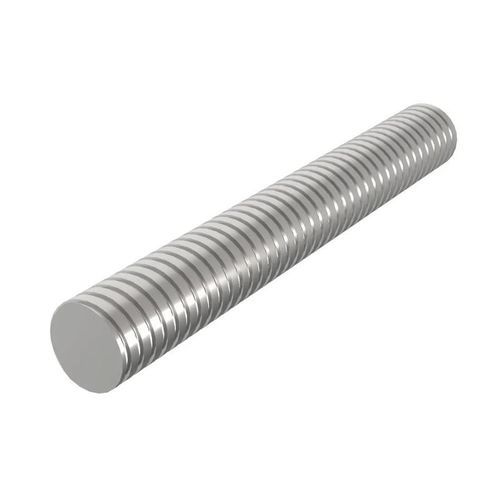

Trapezoidal lead screw SRL1322

stainless steel316 stainless steelsteel

Product Details
Lead screws are a type of screws used to convert rotational motion into linear motion by converting the rotational movement of the screw into forward motion of the nut. 'Lead' refers to the distance a nut will travel for a complete revolution of the screw.

They are used for standard applications that require a lower degree of precision and accuracy, or where a ball screw is not suitable due to environmental conditions. They are strong, durable, and more cost efficient than ball screws.

They are also used in robotics, automotive or CNC machining industries. Available as standard right-hand thread lead screws as well as left-hand threaded. Please note: These lead screws, unlike threaded rods (not to be confused between them), have a thicker and stronger raceway which makes them ideal for heavy load applications where repetitive linear motion occurs.

• Available as standard right-hand thread lead screws as well as left-hand threaded.

• 'Lead' refers to the distance a nut will travel for a complete revolution of the screw.

• Used for standard applications that require a lower degree of precision and accuracy

Materials
304 Stainless Steel, Steel, 316 Stainless Steel

Series Code
SRL1326, SRL1325, SRL1320, SRL1323, SRL1322, SRL1321

Available Thread Sizes

• TR08 x 1.5
• TR10 x 2
• TR10 x 2.0
• TR10 x 4
• TR100 x 16
• TR12 x 3
• TR12 x 3.0
• TR12 x 6
• TR120 x 16
• TR14 x 3
• TR14 x 6
• TR15 x 4
• TR16 x 4
• TR16 x 4.0
• TR16 x 8
• TR18 x 4
• TR18 x 4.0
• TR18 x 8
• TR20 x 4
• TR20 x 4.0
• TR20 x 8
• TR22 x 10
• TR22 x 5
• TR24 x 10
• TR24 x 5
• TR24 x 5.0
• TR26 x 10
• TR26 x 5
• TR28 x 10
• TR28 x 5
• TR28 x 5.0
• TR30 x 12
• TR30 x 6
• TR30 x 6.0
• TR32 x 12
• TR32 x 6
• TR36 x 12
• TR36 x 6
• TR36 x 6.0
• TR40 x 14
• TR40 x 7
• TR40 x 7.0
• TR44 x 14
• TR44 x 7
• TR50 x 8
• TR55 x 9
• TR60 x 9
• TR70 x 10
• TR8 x 1.5
• TR80 x 10
• TR90 x 12
• TR95 x 16

Available Diameters (d1 tol. 7e)

• 10.0
• 12.0
• 14.0
• 16.0
• 18.0
• 20.0
• 22.0
• 24.0
• 26.0
• 28.0
• 30.0
• 32.0
• 36.0
• 40.0
• 44.0
• 50.0
• 55.0
• 60.0
• 70.0
• 80.0
• 90.0
• 95.0
• 100.0
• 120.0

Available Groove Widths (p1)

• 1.5
• 2.0
• 3.0
• 4.0
• 5.0
• 6.0
• 7.0
• 8.0
• 9.0
• 10.0
• 12.0
• 16.0

Available Lengths (l1)

• 1000.0
• 1500.0
• 2000.0
• 3000.0
• 13000.0

Available Materials

• 304 Stainless Steel
• 316 Stainless Steel
• Steel

Characteristics / Technical Specifications

• Converts rotational motion into linear motion
• Available in right-hand and left-hand threads
• Suitable for heavy load applications
• Thicker and stronger raceway than threaded rods
• Used in robotics, automotive, CNC machining
• Cost efficient compared to ball screws
• Available in a wide range of thread sizes, diameters, groove widths, and lengths
