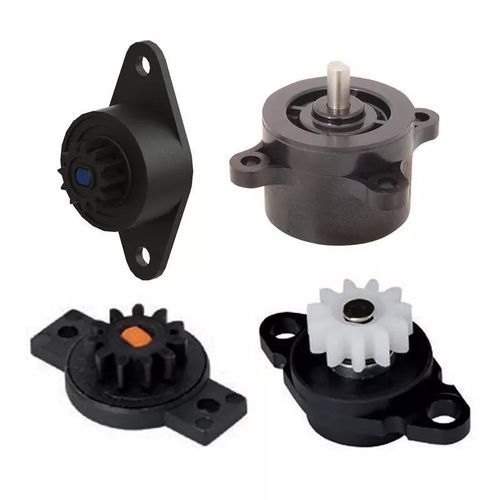

Rotary damper SR6271

mechanicalPOMnylon

Product Details
Rotary Dampers, also known as Rotational Dampers, are mechanical components that function like small gears. They help to slow down or inhibit the motions of moving parts in machinery. A Rotary Damper can also be used to allow a controlled opening and closing of flaps, caps, lids and other covers in machine equipment. Essentially, Rotary Damper control speed and acceleration of a movement in a travelling body. Simple to install, a Rotational Damper can be fitted as part of an assembly and are offered in a range of torques and gear profiles. Our range comes in choice of materials, including; Polyoxymethylene (POM), Nylon and Polycarbonate (PC) - with a variety of colour options.

• Colours: Black, Blue, Natural, White.

Available Variants

• Gear Types: Standard Spur Gear, Barrel Gear
• Materials: POM, PA (Nylon), PC (Polycarbonate), PC;Acetal, POM;PA
• Colours: Black, Blue, Natural, White, Black;Grey
• Torque Range: 0.12 N to 90.0 N

Example Technical Specifications (SKU 078124069999)
Housing Diameter: 15.0 mm (0.591 in)
Maximum Operating Temperature: 90°C (194°F)
Overall Height: 7.6 mm (0.299 in)
Overall Length: 17.7 mm (0.697 in)
Wheel Outside Diameter: 10.4 mm (0.409 in)
Torque: 0.95 N
Material: POM
Colour: Black
Gear Type: Standard Spur Gear

Characteristics / Technical Specifications

• Mechanical rotary damper for speed and motion control
• Available in multiple gear types and torque ratings
• Material options: Polyoxymethylene (POM), Nylon (PA), Polycarbonate (PC)
• Colour options: Black, Blue, Natural, White
• Typical applications: controlling the speed of rotating parts, smooth and consistent motion in various applications, controlled opening/closing of flaps, lids, covers
• Easy to install as part of an assembly
• Maximum operating temperature: up to 90°C (194°F)
