Stainless steel rail SRL1012C

opticallinear

Product Details

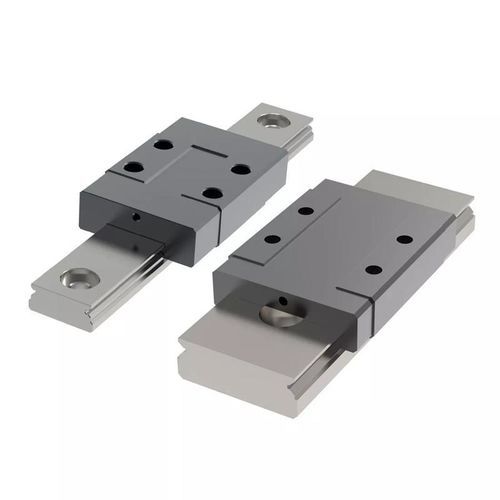

These miniature rail carriages are a compact and versatile solution for achieving precise linear motion in small-scale applications. They're perfect for applications that need accurate placement and fluid movement in constrained places due to their small size, or applications requiring corrosion resistance as they are made from stainless steel.

The rails' 45 contact gothic arch design guarantees similar load capabilities in all directions. These rails move smoothly and feature a low coefficient of friction and break-away forces. It can sustain large weights, is resistant to corrosion, and is resilient to wear and tear.

Carriages come with a plastic dummy rail. It should be mounted by putting the dummy rail up against the end of the real rail and sliding it from one to the other. It is capable of withstanding temperatures between -40C and +80C. Used in different applications, including medical devices, pharmaceuticals, small automation systems, and optical equipment.

• It moves smoothly and feature a low coefficient of friction and break-away forces.

• The rails' 45 contact gothic arch design guarantees similar load capabilities in all directions.

• It is capable of withstanding temperatures between -40C and +80C.

Carriage Style

• Standard
• Wide

For rail (mm)

• 3.0
• 7.0
• 9.0
• 10.0
• 12.0
• 14.0
• 15.0
• 18.0
• 24.0
• 42.0

l1 (mm)

• 11.7
• 16.0
• 19.6
• 21.1
• 23.7
• 27.2
• 30.6
• 31.2
• 31.6
• 35.4
• 39.1
• 40.5
• 40.9
• 43.0
• 44.4
• 47.6
• 50.7
• 55.3
• 59.4
• 60.0
• 74.4

l2 (mm)

• 6.8
• 10.0
• 11.0
• 13.5
• 14.3
• 15.1
• 20.5
• 21.2
• 21.8
• 22.0
• 27.0
• 27.9
• 30.1
• 30.8
• 31.0
• 34.0
• 38.5
• 39.5
• 44.0
• 46.0
• 57.6

l3 (mm)

• 3.5
• 5.5
• 6.5
• 7.0
• 8.0
• 10.0
• 11.0
• 12.0
• 13.0
• 15.0
• 16.0
• 19.0
• 20.0
• 24.0
• 25.0
• 28.0
• 35.0

l4 (mm)

• 10.0
• 15.0
• 20.0
• 25.0
• 30.0
• 40.0

h1 (mm)

• 4.0
• 6.0
• 6.5
• 8.0
• 9.0
• 10.0
• 12.0
• 13.0
• 14.0
• 16.0

Material

• Stainless Steel

Series Code

• SRL1012C
• SRL1010

Applications

• Medical devices
• Pharmaceuticals
• Small automation systems
• Optical equipment

Caractéristiques / spécifications techniques

• Compact and versatile linear motion solution
• Corrosion resistant stainless steel construction
• 45° contact gothic arch rail design for equal load in all directions
• Low coefficient of friction and break-away forces
• Withstands temperatures from -40°C to +80°C
• Includes plastic dummy rail for mounting
• Available in Standard and Wide carriage styles
• Multiple sizes and dimensions (see above)
