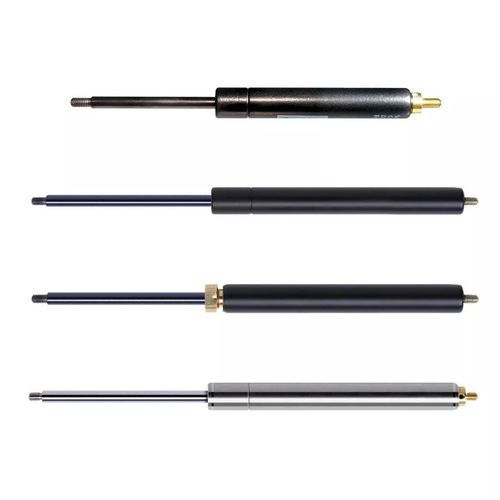

Furniture gas spring SR5487for the automobile industryfor medical equipmentfor industrial use
Add to favorites
Compare this product
Characteristics
- Applications
- for industrial use, for the automobile industry, for furniture, for medical equipment
- Other characteristics
- adjustable
- Force
400 N, 650 N, 1,200 N, 2,500 N
- Stroke
40 mm, 60 mm, 80 mm, 100 mm, 120 mm, 150 mm, 160 mm, 200 mm, 250 mm, 300 mm, 400 mm
(1.6 in, 2.4 in, 3.1 in, 3.9 in, 4.7 in, 5.9 in, 6.3 in, 7.9 in, 9.8 in, 11.8 in, 15.7 in)- Extended length
115 mm, 160 mm, 210 mm, 250 mm, 264 mm, 350 mm, 364 mm, 370 mm, 410 mm, 445 mm, 450 mm, 464 mm, 480 mm, 545 mm, 564 mm, 650 mm, 680 mm, 860 mm, 880 mm
(4.5 in, 6.3 in, 8.3 in, 9.8 in, 10.4 in, 13.8 in, 14.3 in, 14.6 in, 16.1 in, 17.5 in, 17.7 in, 18.3 in, 18.9 in, 21.5 in, 22.2 in, 25.6 in, 26.8 in, 33.9 in, 34.6 in)- Rod diameter
6 mm, 8 mm, 10 mm, 14 mm
(0.2 in, 0.3 in, 0.4 in, 0.6 in)
Description
Product Details
These Gas Springs with Adjustable Force are a form of gas spring that allows the user to alter the force exerted by the gas spring after it has been installed. This is accomplished by varying the pressure of the gas inside the spring. When employed, theoretical forces are frequently discovered to be wrong because factors such as hinge friction and apparent speed of action influence computations. It can be modified to match individual preferences and adjusted while in use, saving you both time and effort.
When the gas springs are delivered, they are charged to their maximum force. It is simple to install and remove with the included equipment, and gas may be progressively released through the valve at the end of the tube to provide the force required for your application. Once confirmed, we can measure the force and offer fixed force gas springs to your specifications. Used in various industries, including automobile, furniture, medical equipment, and industrial machinery.
Series Code
SR5487
Technical Specifications / Characteristics
These Gas Springs with Adjustable Force are a form of gas spring that allows the user to alter the force exerted by the gas spring after it has been installed. This is accomplished by varying the pressure of the gas inside the spring. When employed, theoretical forces are frequently discovered to be wrong because factors such as hinge friction and apparent speed of action influence computations. It can be modified to match individual preferences and adjusted while in use, saving you both time and effort.
When the gas springs are delivered, they are charged to their maximum force. It is simple to install and remove with the included equipment, and gas may be progressively released through the valve at the end of the tube to provide the force required for your application. Once confirmed, we can measure the force and offer fixed force gas springs to your specifications. Used in various industries, including automobile, furniture, medical equipment, and industrial machinery.
- Colour: Black
Series Code
SR5487
Technical Specifications / Characteristics
- Adjustability: Adjustable Force
- Extended Length (examples): 14.331 in (364.0 mm), 17.52 in (445.0 mm), 26.772 in (680.0 mm), 13.78 in (350.0 mm), 10.394 in (264.0 mm), 25.591 in (650.0 mm), 16.142 in (410.0 mm), 18.268 in (464.0 mm), 14.567 in (370.0 mm), 17.717 in (450.0 mm), 4.528 in (115.0 mm), 6.299 in (160.0 mm), 8.268 in (210.0 mm), 9.843 in (250.0 mm), 21.457 in (545.0 mm), 22.205 in (564.0 mm), 18.898 in (480.0 mm), 33.858 in (860.0 mm), 34.646 in (880.0 mm), etc.
- Rod Diameter (examples): 0.236 in (6.0 mm), 0.315 in (8.0 mm), 0.394 in (10.0 mm), 0.551 in (14.0 mm)
- Stroke Length (examples): 5.906 in (150.0 mm), 7.874 in (200.0 mm), 11.811 in (300.0 mm), 2.362 in (60.0 mm), 3.937 in (100.0 mm), 9.843 in (250.0 mm), 1.575 in (40.0 mm), 3.15 in (80.0 mm), 6.299 in (160.0 mm), 4.724 in (120.0 mm), 15.748 in (400.0 mm), etc.
- Maximum Force (examples): 400.0 N, 650.0 N, 1200.0 N, 2500.0 N
- Thread Size (examples): M6, M8 x 1.25
- Colour: Black
- Industry applications: Automobile, furniture, medical equipment, industrial machinery
