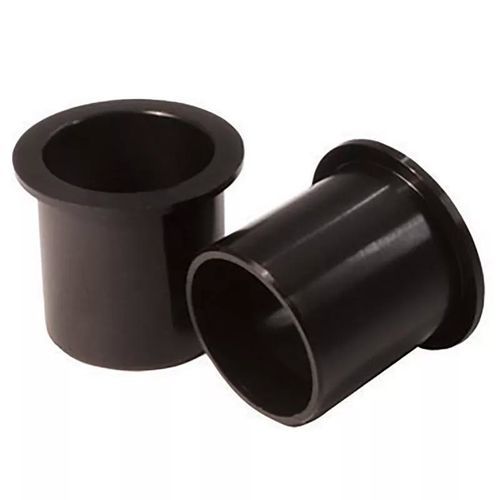

Metal bushing SR1936

PTFEcarbonpolyamide

Product Details
Flanged Sleeve Bearings, commonly known as sleeve bearings, plastic flanged bushings or flanged plain bearings, offer high performance and mechanical stability in a host of applications. They help reduce vibration and noise using a sliding motion, that absorbs friction between moving parts.

Our range features high performance plastic flanged sleeve bearings made from black or natural Polyamide 6.6, with Carbon Fibre and Polytetrafluoroethylene (PTFE) compound. These PTFE sleeve bearings have very low friction and good heat discharge. Friction coefficient 0.11 (statistical).

Also featured are a selection of nylon bearings flanged that are available in yellow, black or natural.

• Suitable for DIN h6-H7 fitting
• Bearing clearance is approximately 1% of the shaft diameter after assembly.

Technical Specifications / Features

• Material: Polyamide 6.6 (PA66), Carbon Fibre, PTFE compound
• Colours available: Black, Natural, Yellow
• Very low friction
• Good heat discharge
• Friction coefficient: 0.11 (statistical)
• Reduces vibration and noise
• DIN h6-H7 fitting
• Bearing clearance: ~1% of shaft diameter after assembly
