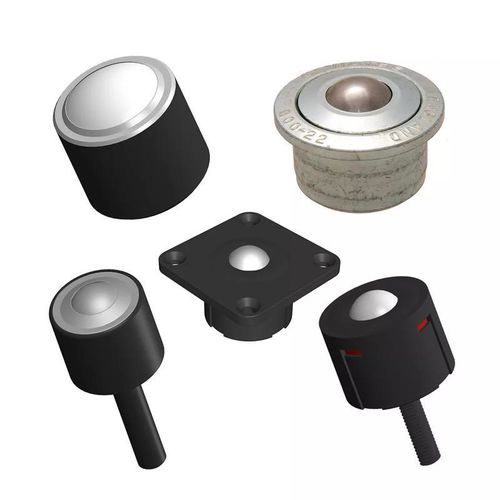

Steel ball transfer unit SR6454

stainless steelnylonfor heavy loads

Product Details
Heavy Duty Ball Transfers are corrosion-resistant and designed with a dirt exit hole, and woollen felt seal. It features a ball that rolls inside a metal or plastic casing, allowing for omnidirectional movement of heavy items. They have a high load capacity & are built to provide a long working life.

Applications include cargo and baggage handling, assembly lines and machine loading applications, sliding door systems & machine tables. Commonly used in heavy industries such as automotive and shipping.

• Material: Stainless Steel, Carbon Steel, Nylon
• Colour: Natural

Series Code
SR6454, SR6455

Available Variants (Selection)

• Ball Diameter: 12.7 mm, 15.8 mm, 19.0 mm, 22.2 mm, 25.4 mm, 30.0 mm, 31.7 mm, 39.7 mm
• Body Diameter: 20.0 mm, 30.0 mm, 35.0 mm, 36.0 mm, 45.0 mm, 50.0 mm, 60.0 mm
• Body Height: 17.0 mm, 20.7 mm, 23.0 mm, 26.0 mm, 28.0 mm, 32.0 mm, 37.0 mm, 46.0 mm
• Head Height: 2.0 mm, 4.0 mm, 7.0 mm, 9.8 mm, 13.0 mm, 13.8 mm, 20.0 mm, 30.0 mm, 35.0 mm, 45.0 mm, 55.0 mm

Typical Attributes per SKU
Ball Diameter | Body Height | Body Diameter | Head Height | Diameter
12.7 mm | 17.0 mm | 20.0 mm | 2.0 mm | 20.0 mm
15.8 mm | - | - | 4.0 mm | -
19.0 mm | 26.0 mm | 30.0 mm | 7.0 mm | 30.0 mm
22.2 mm | 20.7 mm | 36.0 mm | 9.8 mm | 45.0 mm
25.4 mm | 28.0 mm | 35.0 mm | 13.0 mm | 35.0 mm
31.7 mm | 37.0 mm | 50.0 mm | 45.0 mm | 50.0 mm
39.7 mm | 46.0 mm | 60.0 mm | 55.0 mm | 60.0 mm

Caractéristiques / Spécifications techniques

• Material: Stainless Steel, Carbon Steel, Nylon
• Colour: Natural
• Corrosion-resistant
• Dirt exit hole and woollen felt seal
• Omnidirectional movement
• High load capacity
• Long working life
• Applications: cargo and baggage handling, assembly lines, machine loading, sliding door systems, machine tables, automotive, shipping
• Series Code: SR6454, SR6455
