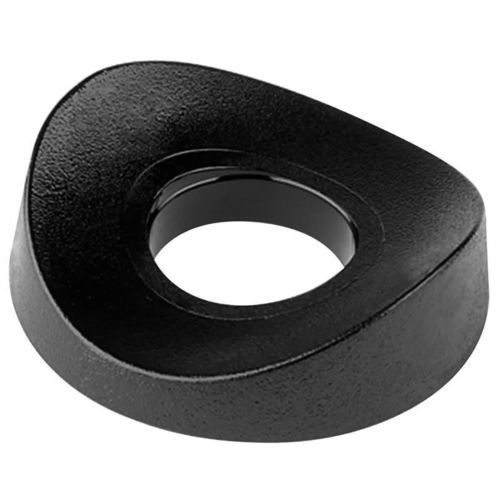

Saddle washer SR1943

roundnylonM6

Product Details
Our Plastic Saddle Washers range consists of Nylon Saddle Washers. This includes Saddle Washers suitable for the assembly of crossed round tubes. Saddle Connectors that fit to the top of a connector to attach a horizontal tube, and is suitable for the M8 range of Expander Connectors (sold separately). Additionally included are Saddle Tube Connectors, for which a solid T connection is created using an M6 Screw; they are suitable for furniture, constructions, stand builders and machinery.

A Saddle Washer is designed to accommodate pipes and tubes. They provide support to the pipe assembly during installation and application. Our Pipe Saddle Washers range is available in a choice of black and white. The Nylon 6/6 material will not cause damage to painted surfaces.

Available Variants (Selection)

• Inside Diameter: 3.3 mm, 4.2 mm, 5.0 mm, 5.2 mm, 6.2 mm, 6.6 mm, 8.2 mm, 8.3 mm, 10.4 mm, 16.5 mm
• Outside Diameter: 10.0 mm, 13.0 mm, 16.0 mm, 19.0 mm, 22.0 mm, 25.0 mm, 28.0 mm, 32.0 mm, 40.0 mm
• Height: 5.5 mm, 9.0 mm
• Overall Height: 4.2 mm, 5.5 mm, 6.8 mm, 8.0 mm, 9.0 mm, 10.0 mm, 11.0 mm, 12.0 mm
• Compatible Thread Sizes: M3, M5, M8
• Colour: Black, Natural (White)
• Material: Nylon 6/6
• Washer Shape: Curved Round
• Washer Type: Saddle Washer

Typical Applications

• Assembly of crossed round tubes
• Furniture
• Constructions
• Stand builders
• Machinery

Key Features

• Distributes load evenly and protects surfaces from damage
• Provides support to pipe assembly during installation and application
• Available in black and white (natural)
• Made from Nylon 6/6, does not damage painted surfaces

Characteristics / Technical Specifications

• Material: Nylon 6/6
• Colours: Black, Natural (White)
• Washer Shape: Curved Round
• Washer Type: Saddle Washer
• Inside Diameter: 3.3 mm to 16.5 mm (various)
• Outside Diameter: 10.0 mm to 40.0 mm (various)
• Height: 5.5 mm, 9.0 mm
• Overall Height: 4.2 mm to 12.0 mm (various)
• Compatible Thread Sizes: M3, M5, M8
