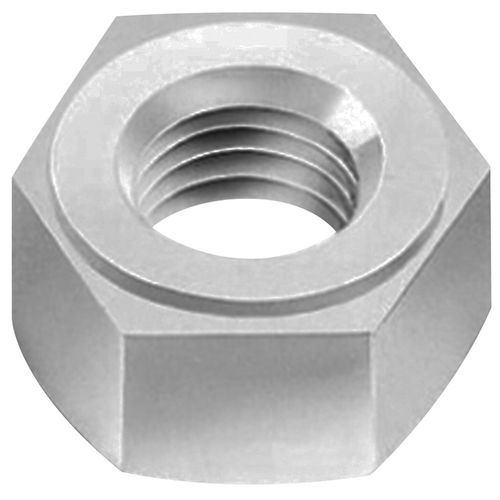

Hexagonal nut 10179635

plasticpolypropylenePEEK

Overview

Standard plastic hexagonal nuts are six-sided internally threaded fastening elements designed for use with bolts or screws and tightened with hand tools such as wrenches or ratchets. The range covers multiple materials, colors, thread types and sizes with many references available from stock.

Series / stock

• Series: SR1954, SR2014
• Wide availability in stock with numerous SKUs for fast delivery
• Samples and 3D CAD models available for design integration

Characteristics / technical specifications

• Type: standard hexagonal nut, internally threaded
• Application: threaded fastening together with bolts or screws; can be tightened with wrench or ratchet
• Materials (examples): Nylon (PA 6/6), PA, Polycarbonate (PC), PEEK, Polypropylene (PP), PVDF
• Colors (examples): Natural, Light brown, Black, Transparent
• Common thread sizes listed: M2, M2.5, M3, M5, M6, M6 x 1.0, M8, M10, M12, M14, M16, M20, M24; imperial examples: #4-40, 1/4-20, 3/8-32, etc.
• Representative dimensions (across flats / total height): M2 — 4.0 mm / 1.6 mm; M2.5 — 5.0 mm / 2.0 mm; M3 — 5.5 mm / 2.4 mm; M5 — 8.0 mm / 4.2 mm; M6 — 10.0 mm / 5.0 mm; M8 — 13.0 mm / 6.5 mm; M10 — 17.0 mm / 8.0 mm
• Flammability rating (example): UL94 V-2 for some PC variants
• Example product codes: 10179635, 10179628, 10220801, 10220849, 10092309, 10313725, 10041512, 10041529, 10041444, 10041482, 10041475, 10041437, 10218402, 10326428, 10326404, 10108970, 10041574, 10114018, 10041611, 10041666

Packaging & availability

• Multiple references indicated as "In stock" with varying quantities; pricing per piece depends on SKU
• Contact supplier for exact lead times, minimum order quantities and bulk pricing
