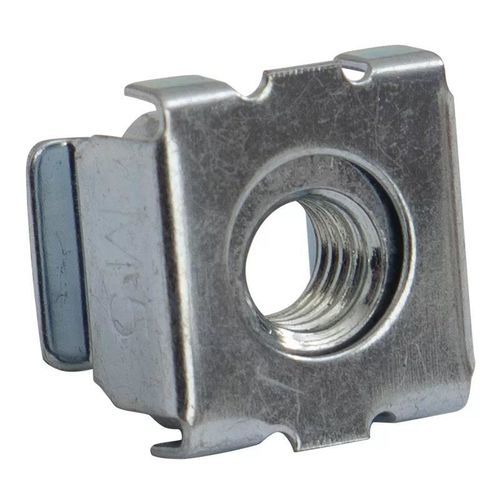

Metal clip nut SR6227

fixing

Cage nuts are used to secure rack-mounted equipment in equipment racks and server cabinets. They provide a removable, reliable fastening solution where sheet metal is too thin to be tapped, enabling selection of different nut and bolt sizes for serviceable installations.

Variants available

• Cage nut M5 Steel — Ref 10371497: Thread M5; Total length 12.5 mm (0.492 in); Total height 9.0 mm (0.354 in); Finish: zinc plated; Price shown: €0.1402 - €0.3474; Stock: 492 in stock.
• Cage nut M6 Steel — Ref 10371503: Thread M6; Total length 12.5 mm (0.492 in); Total height 9.3 mm (0.366 in); Finish: zinc plated; Price shown: €0.1484 - €0.3710; Stock: lead time on request (stock ordered).
• Cage nut M8 Steel — Ref 10371510: Thread M8; Total length 16.3 mm (0.642 in); Total height 11.6 mm (0.457 in); Finish: zinc plated; Price shown: €0.2716 - €0.6769; Stock: 1463 in stock.

Characteristics / technical specifications

• Series code: SR6227
• Material: steel
• Finish: zinc plated
• Nut design: tool-free insertion
• Application: for square holes typically found on mounting rails of equipment racks; allows easy replacement when tapped threads are damaged
• Available thread sizes: M5, M6, M8
• Unit of sale: piece
