Air amplifier kit Model 120224DX Deluxe Super

Overview
Super Air Amplifier 94 Deluxe Kits provide a high-volume, high-velocity airflow using a small amount of compressed air. Based on the Coanda effect, the amplifier entrains large volumes of surrounding air to produce outlet flows up to approximately 25× the compressed air consumption. Both inlet (vacuum) and discharge ends can be ducted; units are quiet, compact and require minimal maintenance.

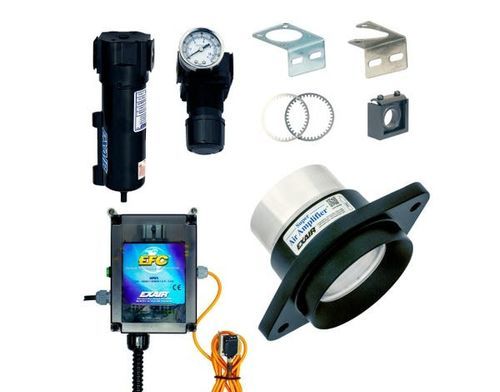

Contents of Deluxe Kit

• Super Air Amplifier 94
• EFC 94 (Electronic Flow Control)
• Shim set
• Filter separator
• Pressure regulator with coupler

Applications

• Vent welding smoke and fumes
• Cool hot parts and tools
• Dry wet parts and processes
• Clean machined components
• Distribute heat in ovens and molds
• Ventilate confined spaces
• Workstation dust collection
• Exhaust tank fumes

Advantages

• Compared to fans:
  • Rated for environments up to 700°F (374°C)
  • Compact, lightweight and portable
  • No electricity required
  • No moving parts and minimal maintenance
  • Both ends easily ducted
  • Instant on/off
  • Variable force and flow via EFC
  • No RF interference
• Compared to venturies and ejectors:
  • Higher air output with lower compressed air consumption
  • Greater flow amplification
  • No internal obstructions
  • Meets OSHA pressure and noise requirements
  • Quiet operation

Models and systems
Available as amplifier-only, kit and deluxe kit configurations. Outlet diameters: 3/4" (19 mm) — model 120020 / kit 120220 / deluxe 120220DX; 1-1/4" (32 mm) — model 120021 / kit 120221 / deluxe 120221DX; 2" (51 mm) — model 120022 / kit 120222 / deluxe 120222DX; 4" (102 mm) — model 120024 / kit 120224 / deluxe 120224DX; 8" (203 mm) — model 120028 / kit 120228 / deluxe 120228DX. Shim sets available for each size.

Performance (80 PSIG / 5.5 BAR)

• 120020 — Air consumption 6.1 SCFM (173 SLPM); Amplification ~12×; Outlet 73 SCFM (2,066 SLPM); Outlet at 6" 219 SCFM (6,198 SLPM); Sound 69 dBA
• 120021 — Air consumption 8.1 SCFM (229 SLPM); Amplification ~18×; Outlet 146 SCFM (4,132 SLPM); Outlet at 6" 436 SCFM (12,339 SLPM); Sound 72 dBA
• 120022 — Air consumption 15.5 SCFM (439 SLPM); Amplification ~22×; Outlet 341 SCFM (9,650 SLPM); Outlet at 6" 1,023 SCFM (28,951 SLPM); Sound 72 dBA
• 120024 — Air consumption 29.2 SCFM (826 SLPM); Amplification ~25×; Outlet 730 SCFM (20,659 SLPM); Outlet at 6" 2,190 SCFM (61,977 SLPM); Sound 73 dBA
• 120028 — Air consumption 120 SCFM (3,396 SLPM); Amplification ~25×; Outlet 3,000 SCFM (84,900 SLPM); Outlet at 6" 9,000 SCFM (254,700 SLPM); Sound 88 dBA

How it works
Compressed air is throttled through a small annular nozzle at high velocity. The primary airstream adheres to the Coanda profile and creates a low-pressure center that entrains surrounding air. The combined flows exhaust as a high-volume, high-velocity output suitable for blowing, drying, cooling and ventilation.

Technical specifications

• Commercial name / Model: Super Air Amplifier 94 Deluxe Kit
• Manufacturer / Brand: EXAIR
• SKU / Item code: P120220DX
• Included: Super Air Amplifier 94, EFC 94, shim set, filter separator, pressure regulator with coupler
• Outlet diameters: 3/4" (19 mm), 1-1/4" (32 mm), 2" (51 mm), 4" (102 mm), 8" (203 mm)
• Flow amplification: up to ~25× (model and pressure dependent)
• Rated operating environment: up to 700°F (374°C)
• No moving parts; compact and portable; both vacuum and discharge ends ductable
• Typical uses: fume/smoke ventilation, cooling, drying, cleaning, heat distribution, confined-area ventilation, dust collection
• Listed price on page: 2,121 USD
• Country of manufacture: USA
