Adjustable air amplifier kit Model 6234DX

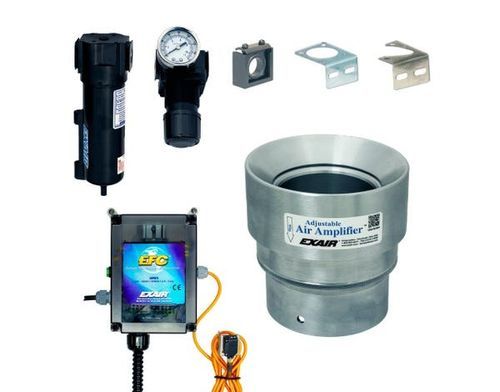

Overview Adjustable Air Amplifier™ Deluxe Kits include an Adjustable Air Amplifier, EFC™ (Electronic Flow Control), shim set, filter separator and pressure regulator with coupler. Air Amplifiers entrain large volumes of surrounding air using the Coanda effect to produce high-volume, high-velocity outlet flows for circulation, fume/smoke removal and light-material movement. Force and flow are adjusted by rotating the exhaust end to open or close the continuous exhaust gap; the knurled ring locks the setting when tightened. Units are available in aluminum or stainless steel for food-service, high-temperature (up to 400°F/204°C) and corrosive environments.

Applications

• Vent welding smoke and fumes
• Cool hot parts and tooling
• Dry wet parts and assemblies
• Clean machined components
• Distribute heat in ovens and molds
• Ventilate confined or enclosed areas
• Assist dust-collection systems
• Exhaust tank and process fumes

Advantages Compared to fans:

• Compact, lightweight and portable
• No electricity required
• No moving parts—minimal maintenance
• Ends can be easily ducted
• Instant on/off response
• Variable force and flow via continuous adjustment
• No RF interference

Compared to venturies and ejectors:

• Higher entrainment with lower compressed-air consumption
• Greater flow amplification ratios
• No internal obstructions to clog
• Meets OSHA pressure and noise guidelines
• Quiet operation

Systems Adjustable Air Amplifiers are offered three ways: Air Amplifier only; Air Amplifier Kit (includes filter separator and pressure regulator with coupler); Deluxe Kit (includes EFC™, filter separator and pressure regulator with coupler). Available outlet diameters: 3/4" (19 mm), 1-1/4" (32 mm), 2" (51 mm), 3" (76 mm), 4" (102 mm).

Performance (Deluxe Kits tested at 80 PSIG / 5.5 BAR)

• 6230DX, 6240DX — Air consumption 8.9 SCFM / 252 SLPM | Amplification ratio 10 | Outlet 89 SCFM / 2,520 SLPM | At 6" (152 mm) 267 SCFM / 7,560 SLPM | Sound 78 dBA
• 6231DX, 6241DX — Air consumption 12.9 SCFM / 365 SLPM | Ratio 16 | Outlet 206 SCFM / 5,833 SLPM | At 6" 618 SCFM / 17,500 SLPM | Sound 81 dBA
• 6232DX, 6242DX — Air consumption 21.5 SCFM / 608 SLPM | Ratio 20 | Outlet 430 SCFM / 12,176 SLPM | At 6" 1,290 SCFM / 36,529 SLPM | Sound 82 dBA
• 6233DX, 6243DX — Air consumption 35.2 SCFM / 997 SLPM | Ratio 22 | Outlet 774 SCFM / 21,917 SLPM | At 6" 2,323 SCFM / 65,780 SLPM | Sound 83 dBA
• 6234DX, 6244DX — Air consumption 50 SCFM / 1,416 SLPM | Ratio 24 | Outlet 1,200 SCFM / 33,980 SLPM | At 6" 3,600 SCFM / 101,941 SLPM | Sound 84 dBA

How It Works Compressed air enters an annular chamber and is throttled through a ring nozzle to form a high-velocity primary airstream. The primary stream follows the Coanda profile toward the outlet, creating a low-pressure center that entrains surrounding air. The combined primary and entrained air exhausts as a high-volume, high-velocity flow.

Gallery / Examples Product images show aluminum and stainless-steel Deluxe Kits and application photos for drying, cooling, dust and fume extraction.

Caractéristiques / spécifications techniques

• Marque: EXAIR
• Kit includes: Adjustable Air Amplifier, EFC™ (Electronic Flow Control), shim set, filter separator and pressure regulator with coupler
• Materials: Aluminum or Stainless Steel (stainless for food service, corrosive environments and elevated temperatures)
• Maximum recommended temperature (stainless option): up to 400°F / 204°C
• Adjustment: Continuous adjustable exhaust gap via knurled ring (locks when tightened)
• Available outlet diameters: 3/4" (19 mm), 1-1/4" (32 mm), 2" (51 mm), 3" (76 mm), 4" (102 mm)
• Model families: Aluminum Only (6040–6044), Aluminum Kit (6240–6244), Deluxe Aluminum Kit (6240DX–6244DX), Stainless Only (6030–6034), Stainless Kit (6230–6234), Deluxe Stainless Kit (6230DX–6234DX)
• Performance: see listed example values at 80 PSIG / 5.5 BAR
• Typical applications: fume/smoke extraction, cooling, drying, part cleaning, oven/mold heat distribution, confined-space ventilation, dust collection, tank fume exhaust
