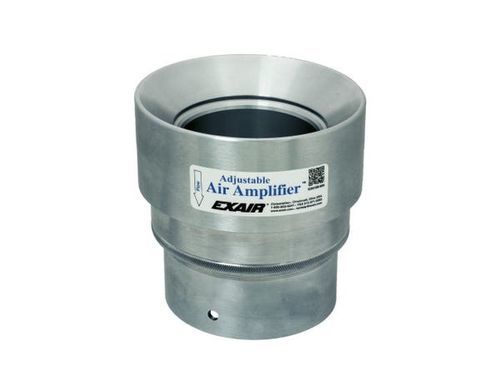

Adjustable air amplifier Model 6043

aluminiumfor venting and exhausthigh-temperature

Description Force and flow for the Adjustable Air Amplifier™ is changed by turning the exhaust end (with the knurled ring loose) to open or close the continuous air gap. When the desired performance is obtained, the knurled ring can be tightened to lock the flow at that setting. Utilizing the Coanda effect, these Air Amplifiers provide a simple, low cost way to circulate air, move smoke and fumes, cool or dry parts, and distribute heat. Available in aluminum or stainless steel for food service, higher temperatures (up to 400°F / 204°C), and corrosive applications. Custom materials, mounting options (flanges) and sizes are available.

Applications

• Vent welding smoke
• Cool hot parts
• Dry wet parts
• Clean machined parts
• Distribute heat in ovens and molds
• Ventilate confined areas
• Dust collection
• Exhaust tank fumes

Advantages Compared to Fans:

• Compact, lightweight and portable
• No electricity required at the point of use (uses compressed air)
• No moving parts — minimal maintenance
• Ends are easily ducted
• Instant on/off and variable force/flow
• No RF interference

Compared to Venturies and Ejectors:

• Higher flow amplification with lower compressed air consumption
• No internal obstructions
• Meets OSHA pressure and noise requirements; quiet operation

Systems Adjustable Air Amplifiers are available as single units or as kits. Example system types and model series (representative):
Model types:
- Adjustable Air Amplifier Only
- Adjustable Air Amplifier Kits (include amplifier, filter separator and pressure regulator with coupler)
- Deluxe Adjustable Air Amplifier Kits (include amplifier, EFC electronic flow control, filter separator and pressure regulator with coupler)

Representative model numbers by outlet diameter:
Model | Outlet Diameter | Example model numbers
Aluminum Adjustable Air Amplifier Only | 3/4" (19mm) / 1-1/4" (32mm) / 2" (51mm) / 3" (76mm) / 4" (102mm) | 6040 / 6041 / 6042 / 6043 / 6044
Aluminum Adjustable Air Amplifier Kit | 3/4" / 1-1/4" / 2" / 3" / 4" | 6240 / 6241 / 6242 / 6243 / 6244
Stainless Steel Adjustable Air Amplifier Only | 3/4" / 1-1/4" / 2" / 3" / 4" | 6030 / 6031 / 6032 / 6033 / 6034
Stainless Steel Adjustable Air Amplifier Kit | 3/4" / 1-1/4" / 2" / 3" / 4" | 6230 / 6231 / 6232 / 6233 / 6234

Performance (excerpt, tested at 80 PSIG / 5.5 BAR, 0.002" gap) Example performance values (selected models):
Model group | Air Consumption (SCFM) | Amplification Ratio | Air Volume at Outlet (SCFM) | Sound Level (dBA)
6030, 6230, 6040, 6240 | 8.9 SCFM | 10 | 89 SCFM | 78 dBA
6031, 6231, 6041, 6241 | 12.9 SCFM | 16 | 206 SCFM | 81 dBA
6032, 6232, 6042, 6242 | 21.5 SCFM | 20 | 430 SCFM | 82 dBA
6033, 6233, 6043, 6243 | 35.2 SCFM | 22 | 774 SCFM | 83 dBA
6034, 6234, 6044, 6244 | 50 SCFM | 24 | 1,200 SCFM | 84 dBA

Technical specifications

• Commercial name: Adjustable Air Amplifier™
• SKU / example product code shown on page: P6030 (configurable product)
• Materials available: Aluminum or Stainless Steel (stainless suitable for food service, higher temperature and corrosive applications)
• Outlet diameters available: 3/4" (19 mm), 1-1/4" (32 mm), 2" (51 mm), 3" (76 mm), 4" (102 mm)
• Operating principle: Coanda effect — primary high velocity air induces large surrounding airflow
• Adjustability: Continuous air gap adjusted by turning exhaust end; knurled ring locks setting
• Test conditions for performance data: values shown at 80 PSIG (5.5 BAR) with a .002" (0.05 mm) gap
• Typical uses: cooling, drying, smoke/fume removal, part cleaning, oven/mold air distribution, confined area ventilation
