Hose Venturi ejector Model 6080

for conveyorfor pneumatic conveyinglow-noise level

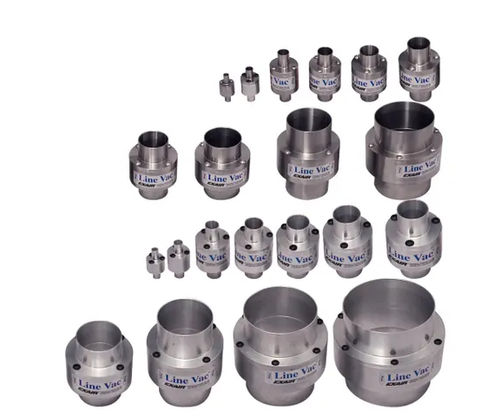

Overview The Line Vac™ is a compressed-air operated in-line conveyor that connects to standard hose to convey bulk materials over long distances. Sizes fit 3/8" to 5" (10 mm to 127 mm) hose. Material flow is regulated with a pressure regulator. Optional mounting brackets are available. No moving parts or electrical supply required. Construction options include aluminum, Type 303 stainless steel, Type 316 stainless steel and hardened alloy.

Applications

• Hopper loading
• Fiber tensioning
• Material conveying
• Waste / trim removal
• Chip removal
• Part transfer
• Filling operations

Advantages

• Compact design
• Low noise operation
• No moving parts (maintenance‑free)
• Fits standard hose or tube
• Available in aluminum, stainless steel or hardened alloy
• High throughput capacity

Materials Aluminum is the economical option for general-purpose conveying. Maximum temperature: 250°F (121°C). Standard stainless steel models (Type 303) offer good corrosion resistance and are suitable for food service, abrasive or corrosive applications. Maximum temperature: 800°F (426°C). Type 316 stainless steel provides superior corrosion resistance for critical applications including certain food and pharmaceutical uses. Maximum temperature: 1000°F (538°C).

Models Line Vacs are available individually and in kits. Line Vac Kits include a Line Vac, mounting bracket, filter separator and pressure regulator with coupler. Duty levels: light, standard and heavy/ultra duty. Configurations are available for use with hose or NPT threaded pipe.

Accessories

• Clear PVC conveying hose in multiple I.D. sizes (3/8" / 10 mm up to 3" / 76 mm) available in lengths up to 50' (15.2 m)
• Mounting brackets for 3/8" (10 mm) through 5" (127 mm)
• Filter separator and pressure regulator (included in kits)
• Drum covers (fine mesh non-woven) for 30 or 55 gallon drums; includes hose clamps and spring buckle strap

Model Comparison (Material / Temp Rating / Corrosion Resistance)

• Aluminum Line Vac — Temperature: 275°F (135°C) — Corrosion resistance: Fair
• Stainless Steel Line Vac (Type 303) — Temperature: 400°F (204°C) — Corrosion resistance: Good
• Stainless Steel Line Vac (Type 316) — Temperature: 400°F (204°C) — Corrosion resistance: Excellent
• Stainless Steel Flanged Line Vac (Type 316) — Temperature: 400°F (204°C) — Corrosion resistance: Excellent
• High Temperature SS Line Vac (Type 303) — Temperature: 900°F (482°C) — Corrosion resistance: Good
• High Temperature SS Line Vac (Type 316) — Temperature: 900°F (482°C) — Corrosion resistance: Excellent
• Heavy Duty Line Vac (Hardened Alloy) — Temperature: 400°F (204°C) — Corrosion resistance: Good
• Ultra Duty Line Vac (Hardened Alloy) — Temperature: 400°F (204°C) — Corrosion resistance: Good

Line Vac Performance (80 PSIG / 5.5 BAR) — selected rows

• 6058, 6058-316, HT6058, HT6058-316, 6078 — Air consumption: 5.60 SCFM (158 SLPM) — Vacuum: -120" H2O (-29.9 kPa)
• 6059, 6059-316, HT6059, HT6059-316, 6079 — Air consumption: 7.00 SCFM (198 SLPM) — Vacuum: -100" H2O (-24.9 kPa)
• 6060, 6060-316, HT6060, HT6060-316, 6080 — Air consumption: 10.70 SCFM (303 SLPM) — Vacuum: -72" H2O (-18 kPa)
• 6061, 6061-316, HT6061, HT6061-316, 6081 — Air consumption: 14.70 SCFM (416 SLPM) — Vacuum: -42" H2O (-11 kPa)
• 6062, 6062-316, HT6062, HT6062-316, 6082 — Air consumption: 25.90 SCFM (733 SLPM) — Vacuum: -42" H2O (-11 kPa)

How It Works Compressed air enters an annular plenum and is directed through nozzles into the throat. The resulting jets create a vacuum at the intake, drawing material into the unit and accelerating it for conveying over long vertical or horizontal distances.

Technical specifications

• Series / Model: Line Vac™
• SKU example on this page: P6060 (configured product corresponds to model family including 6060)
• Fits hose I.D.: 3/8" to 5" (10 mm to 127 mm)
• Example: Model 6060 fits 3/4" (19 mm) hose
• Air inlet (example model 6060): 1/4" FNPT
• Materials available: Aluminum; Type 303 stainless steel; Type 316 stainless steel; hardened alloy (heavy/ultra duty)
• Temperature ratings: Aluminum up to 250°F (121°C); Type 303 up to 800°F (426°C); Type 316 up to 1000°F (538°C)
• Operation: Compressed-air operated, no moving parts, flow controlled by pressure regulator
• Typical applications: hopper loading, fiber tensioning, material conveying, waste/trim removal, chip removal, part transfer, filling operations
• Accessories: clear PVC conveying hose (multiple I.D. sizes), mounting brackets, filter separator, pressure regulator, drum covers
• Performance example (6060 at 80 PSIG / 5.5 BAR): Air consumption 10.70 SCFM (303 SLPM), Vacuum ≈ -72" H2O (≈ -18 kPa)
• Packaging options: individual Line Vac or Line Vac Kits (include mounting bracket, filter separator and pressure regulator with coupler)
