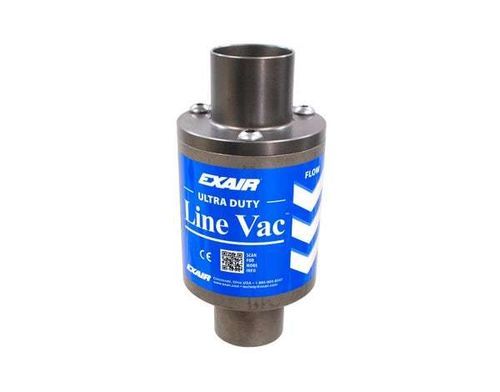

Air-operated conveyor Model 170150

transportingfor materials handlingtransfer

Overview The Ultra Duty Line Vac is EXAIR's most powerful, wear-resistant compressed-air conveyor. Its engineered ceramic insert and hardened-alloy construction are optimized for abrasive materials such as sand, blasting media and powders. Air consumption has been optimized to deliver high conveying power for long vertical and horizontal runs. Available in sizes 1-1/4" (32 mm) through 2" (51 mm). Kits available.

Applications

• Hopper loading
• Fiber tensioning
• Material conveying
• Waste/trim removal
• Chip removal
• Part transfer
• Filling operations

Advantages

• Hardened alloy body with engineered ceramic insert for abrasive media
• Wear-resistant construction
• Highest throughput capability among Line Vacs
• Compact footprint
• Low noise operation
• No moving parts (reduces maintenance)
• Fits standard hose, tube and pipe
• Available from stock

Models Ultra Duty Line Vacs are offered as individual units and as kits for use with NPT threaded pipe. Ultra Duty Line Vac Kits include an Ultra Duty Line Vac, filter separator and pressure regulator with coupler. Common model numbers: 170125, 170150, 170200.

Accessories

• Clear PVC hose: multiple I.D. sizes (examples: 3/8" / 10 mm up to 3" / 76 mm), lengths up to 50' (15.2 m); smooth internal bore to reduce build-up; temperature rating -4 to 150°F (-20 to 66°C).
• Mounting brackets: available for Line Vacs from 3/8" (10 mm) through 5" (127 mm).
• Drum covers: fine-mesh non-woven covers for 30 or 55 gallon drums; suitable for conveyance hoses with outside diameters from 3/4" to 3.4"; supplied with hose clamps and spring buckle strap.

Model comparison

• Aluminum Line Vac — 275°F (135°C) — Fair corrosion resistance
• Stainless Steel Line Vac (Type 303) — 400°F (204°C) — Good
• Stainless Steel Line Vac (Type 316) — 400°F (204°C) — Excellent
• Stainless Steel Flanged Line Vac (Type 316) — 400°F (204°C) — Excellent
• High Temperature Stainless Steel Line Vac (Type 303) — 900°F (482°C) — Good
• High Temperature Stainless Steel Line Vac (Type 316) — 900°F (482°C) — Excellent
• Heavy Duty Line Vac (Hardened Alloy) — 400°F (204°C) — Good
• Ultra Duty Line Vac (Hardened Alloy) — 400°F (204°C) — Good

Ultra Duty Line Vac Kit Performance (80 PSIG / 5.5 BAR)

• 170125 — Size: 1.25 in (32 mm) — Air consumption: 49 SCFM (1,388 SLPM) — Vacuum: approx. -83 "H2O (-21 kPa)
• 170150 — Size: 1.50 in (38 mm) — Air consumption: 55 SCFM (1,557 SLPM) — Vacuum: approx. -60 "H2O (-15 kPa)
• 170200 — Size: 2.00 in (51 mm) — Air consumption: 75 SCFM (2,124 SLPM) — Vacuum: approx. -42 "H2O (-10 kPa)

Dimensions (selected)

• 170125 — Hose size A: 1.25 in / 32 mm — Air inlet: 1/4 FNPT
• 170150 — Hose size A: 1.50 in / 38 mm — Air inlet: 3/8 FNPT
• 170200 — Hose size A: 2.00 in / 51 mm — Air inlet: 3/8 FNPT

How it works Compressed air enters an annular plenum and is injected through directed nozzles into the throat. The resulting jets create a vacuum at the intake that draws material in and accelerates it through the unit for conveying over long vertical or horizontal distances.

Technical specifications

• Brand: EXAIR
• Commercial name / series: Ultra Duty Line Vac™
• Example SKU: P170125
• Available sizes: 1-1/4" (32 mm), 1-1/2" (38 mm), 2" (51 mm)
• Construction: hardened alloy with engineered ceramic insert (for abrasive materials)
• No moving parts
• Temperature rating (Ultra Duty / Hardened Alloy): up to 400°F (204°C)
• Air consumption at 80 PSIG (5.5 BAR): 49 SCFM (170125), 55 SCFM (170150), 75 SCFM (170200)
• Approximate vacuum at 80 PSIG: -83 "H2O (-21 kPa) for 170125; -60 "H2O (-15 kPa) for 170150; -42 "H2O (-10 kPa) for 170200
• Inlet thread: 170125 = 1/4 FNPT; 170150 & 170200 = 3/8 FNPT
• Kits available: include Ultra Duty Line Vac, filter separator and pressure regulator with coupler
• Compatible with standard hose, tube and pipe; hoses stocked in multiple I.D. sizes and lengths up to 50' (15.2 m)
