Lubricated Venturi ejector Model 161250-316

for conveyorlow-noise levelstainless steel

Description

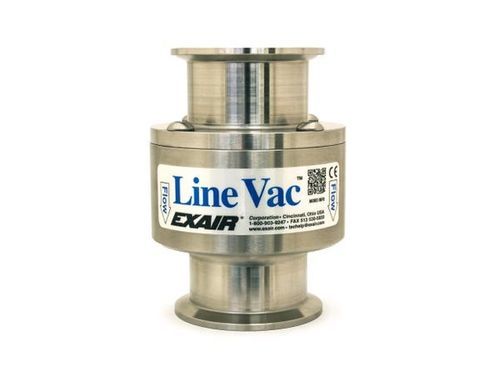

EXAIR's compressed air operated Sanitary Flange Line Vac™ connects to standard clamp-style flange fittings to create an in-line conveyor for sanitary applications. Constructed from Type 316 stainless steel, these Line Vacs move large volumes of material over long distances with no moving parts and no electricity required. Material flow is regulated via a pressure regulator; an optional mounting bracket is available for easy installation. Available flange sizes: 1-1/2", 2", 2-1/2" and 3".

Applications

• Hopper loading
• Fiber tensioning
• Material conveying
• Waste/trim removal
• Chip removal
• Part transfer
• Filling operations

Advantages

• ISO 2852 compatible — fits standard sanitary flanges
• Type 316 stainless steel construction for sanitary environments
• Four stock sizes covering common flange dimensions
• No moving parts — minimal maintenance
• Compact footprint
• High throughput capability
• Quiet operation

Models
Sanitary Flange Line Vacs are offered individually or as kits. Kits include a Sanitary Flange Line Vac, mounting bracket, filter separator and pressure regulator with coupler. Stock Type 316 stainless steel models correspond to flange sizes 1-1/2" (38 mm), 2" (51 mm), 2-1/2" (64 mm) and 3" (76 mm): 161150-316, 161200-316, 161250-316, 161300-316.

Accessories
Available accessories include sized mounting brackets for Line Vacs and fine-mesh non-woven drum covers for use with conveyance hoses. Kits include mounting bracket, filter separator and pressure regulator when specified.

Performance (80 PSIG / 5.5 BAR)
Model 161150-316 — Size: 1.5 in (38 mm) — Air Consumption: 33 SCFM (934 SLPM) — Vacuum: -36.8 in H2O (-9 kPa)
Model 161200-316 — Size: 2 in (51 mm) — Air Consumption: 45 SCFM (1,274 SLPM) — Vacuum: -28.5 in H2O (-7 kPa)
Model 161250-316 — Size: 2.5 in (64 mm) — Air Consumption: 58.5 SCFM (1,657 SLPM) — Vacuum: -23.5 in H2O (-6 kPa)
Model 161300-316 — Size: 3 in (76 mm) — Air Consumption: 68.5 SCFM (1,939 SLPM) — Vacuum: -14.7 in H2O (-4 kPa)

Model Comparison (selected)

• Aluminum Line Vac — Temperature Rating: 275°F (135°C) — Corrosion Resistance: Fair
• Stainless Steel Line Vac (Type 303) — Temperature Rating: 400°F (204°C) — Corrosion Resistance: Good
• Stainless Steel Line Vac (Type 316) — Temperature Rating: 400°F (204°C) — Corrosion Resistance: Excellent (used for Sanitary Flange Line Vac)
• High Temperature models (Type 303/316) — Temperature Rating: up to 900°F (482°C)
• Heavy Duty / Ultra Duty (Hardened Alloy) — Temperature Rating: 400°F (204°C) — Corrosion Resistance: Good

Dimensions (key values by model)
Models: 161150-316, 161200-316, 161250-316, 161300-316
A (Hose Size) in: 2.00, 2.52, 3.05, 3.58 — mm: 51, 64, 77, 91
B in: 1.25, 1.75, 2.25, 2.75 — mm: 32, 44, 57, 70
C in: 2.75, 3.25, 3.75, 4.25 — mm: 70, 83, 95, 108
D in: 4.38, 4.38, 4.38, 5.63 — mm: 111, 111, 111, 143
E in: 2.13, 2.13, 2.13, 2.75 — mm: 54, 54, 54, 70
F in: 1.25, 1.25, 1.25, 1.75 — mm: 32, 32, 32, 44
G in: 1.69, 2.22, 2.78, 3.28 — mm: 43, 56, 71, 83
H (air inlet): 3/8" NPT, 3/8" NPT, 3/8" NPT, 1/2" NPT
I (angle): ~20°, 20°, 20°, 21.3°

How it works
Compressed air enters an annular plenum and is injected through directed nozzles into the throat. The resulting air jets create a vacuum at the intake which draws material in and accelerates it through the unit for conveying over long vertical or horizontal runs.

Gallery notes
Sanitary Flange Line Vacs are available in four sizes from 1-1/2" to 3". Gallery images typically show sanitary flange installations and pharmaceutical application examples.

Technical specifications

• Brand: EXAIR
• Material: Type 316 stainless steel (Sanitary Flange Line Vac)
• Compatibility: ISO 2852 compatible (fits standard sanitary flanges)
• Available flange sizes: 1-1/2", 2", 2-1/2", 3"
• Stock model numbers (Type 316 SS): 161150-316 (1.5"), 161200-316 (2"), 161250-316 (2.5"), 161300-316 (3")
• Typical kit contents: Sanitary Flange Line Vac, mounting bracket, filter separator, pressure regulator (with coupler)
• Operation: compressed-air operated, no moving parts; regulator controls material flow rate
• Performance at 80 PSIG (5.5 BAR): see per-model air consumption and vacuum values above
• Air inlet sizes by model: 3/8" NPT (smaller models) and 1/2" NPT (largest)
• Temperature ratings: Type 316 models rated ~400°F (204°C); high temperature models available to 900°F (482°C)
• Applications: hopper loading, fiber tensioning, material conveying, waste/trim removal, chip removal, part transfer, filling operations
• SKU shown on page: P161150
