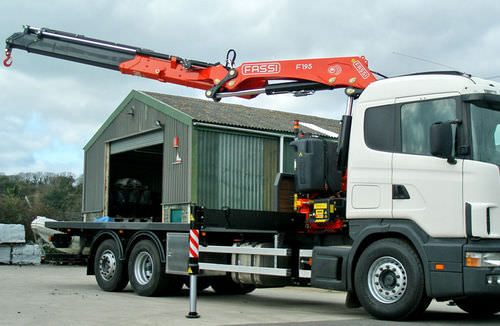

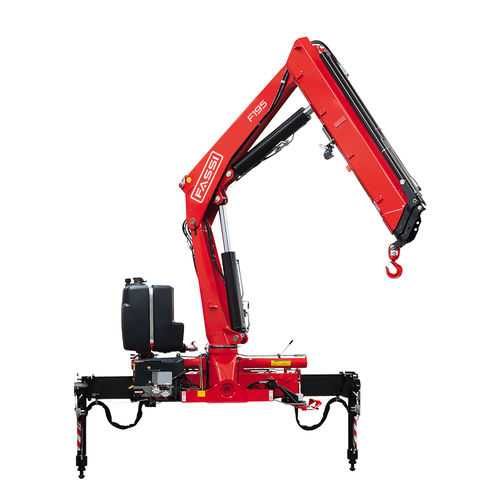

Truck-mounted crane F195A series
swing-armfor constructionlifting

truck-mounted crane
truck-mounted crane
truck-mounted crane
truck-mounted crane
truck-mounted crane
truck-mounted crane
truck-mounted crane
Add to favorites
Compare this product


Characteristics

Configuration
truck-mounted
Structure
swing-arm
Operating environment
for construction
Applications
lifting, loading
Engine type
with combustion engine
Number of axles
2-axle, 3-axle
Other characteristics
hydraulic
Lift capacity

17,500 kg
(38,580.9 lb)

Horizontal reach

22.7 m
(74'05" )

Width (base)

Max.: 2,520 mm
(99 in)

Min.: 2,445 mm
(96 in)

Total weight

Max.: 3,500 kg
(7,716 lb)

Min.: 2,005 kg
(4,420 lb)

Description

FX500 control unit S800 digital distributor bank dynamic version (.2): with linkage ProLink system with double linkage rotation 400°with rack and pinion From 13 t/m upwards we enter the realm of medium capacity knuckle boom cranes, which provide performance but at the same time are extremely dynamic. Suitable to be fitted on two- and three-axle trucks, in a variety of setups. The technological fittings include all the most innovative electronic, hydraulic and mechanical components. Not without reason are therefore fitted with devices that are state-of-the-art in terms of both performance and safety. To this must be added the availability of the Prolink function and a rich series of additional accessories and devices.
