Truck-mounted crane F32A.0 series

boomliftingloading

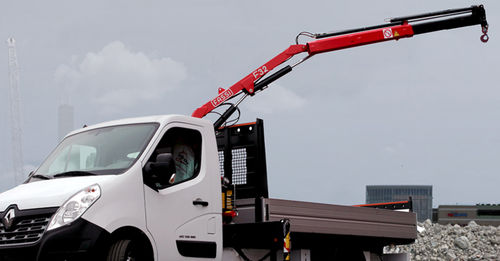

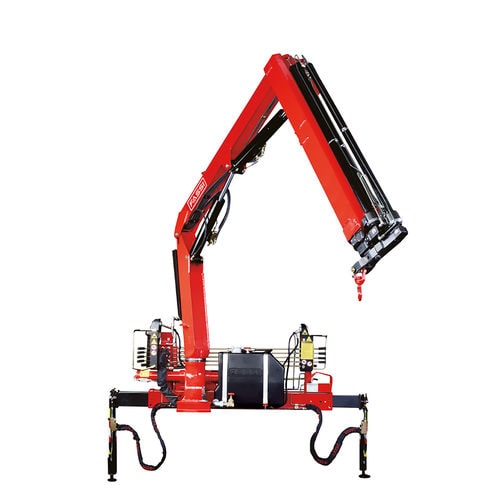

Simple, compact and manoeuvrable: the Fassi F32A active is designed for light and precise applications. With a maximum moment of 2.75 tm and a hydraulic outreach of up to 6.90 metres, it stands out as a reliable ally for everyday lifting operations. It is equipped with a Walvoil monobloc hydraulic distributor, as well as a pressure gauge and immediate stop devices that enhance safety and operational control. The active version (.0) of the F32A focuses on simplicity and compactness, guaranteeing 370° rotation with rack and pinion, delivering agility even in the tightest manoeuvres. A security system that detects if the lateral extension supports of the outriggers are fully retracted, both for manually and hydraulically extendable outrigger supports. Linked to the height check system of the crane, at rest in the transport position, it is completed by a visualizer with visual and acoustic alarm, to install on the dashboard of the vehicle cab. A Fassi system that guarantees an exceptional extension/retraction speed of the telescopic booms, built up by a set of equally powerful independent rams, linked in series connection and activated by a single control. Special independent fixing system of the extension rams to guarantee high vertical lifting performances. Ultra high strength steel used for the construction of the Fassi structural components, with a high elastic limit, increases structural strength and resistance of the components and at the same time reduces the weight of the crane, to the benefit of the loading capacity of the vehicle which increases. Fewer welded joints, the stronger the structure will be.
