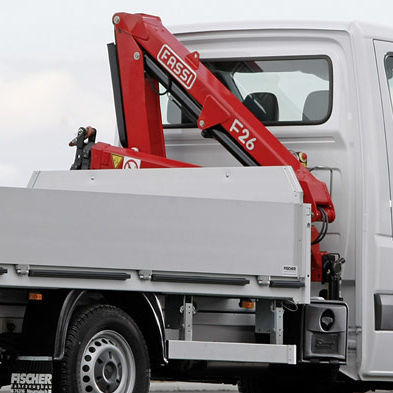

Truck-mounted crane F26A active series

boomliftingwith combustion engine

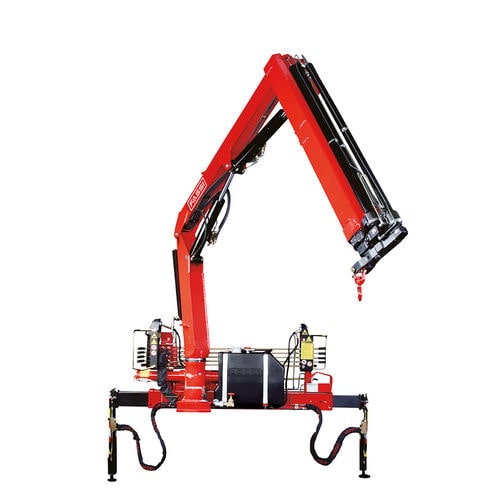

Compact and manoeuvrable, the Fassi F26A active offers a maximum moment of 2.30 tm and achieves a hydraulic outreach of up to 6.90 metres, ideal for light, everyday lifting operations. With its reduced volume, it easily adapts to small vehicles, optimising space without sacrificing functionality. The equipment range includes the Walvoil monobloc hydraulic distributor, pressure gauge and immediate stop systems for maximum safety. The active configuration (.0) and 370° rotation with rack and pinion guarantee simple and reliable operations. A security system that detects if the lateral extension supports of the outriggers are fully retracted, both for manually and hydraulically extendable outrigger supports. Linked to the height check system of the crane, at rest in the transport position, it is completed by a visualizer with visual and acoustic alarm, to install on the dashboard of the vehicle cab. A Fassi system that guarantees an exceptional extension/retraction speed of the telescopic booms, built up by a set of equally powerful independent rams, linked in series connection and activated by a single control. Special independent fixing system of the extension rams to guarantee high vertical lifting performances. Ultra high strength steel used for the construction of the Fassi structural components, with a high elastic limit, increases structural strength and resistance of the components and at the same time reduces the weight of the crane, to the benefit of the loading capacity of the vehicle which increases.
