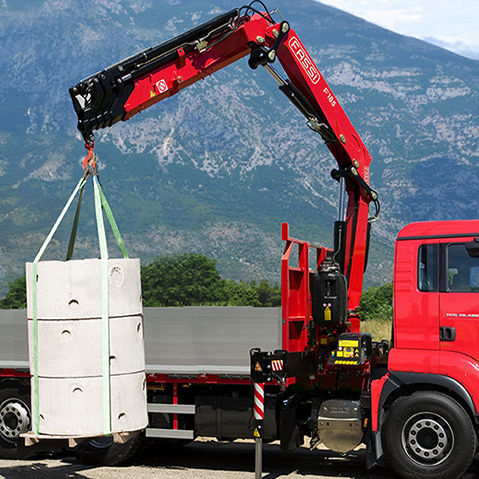

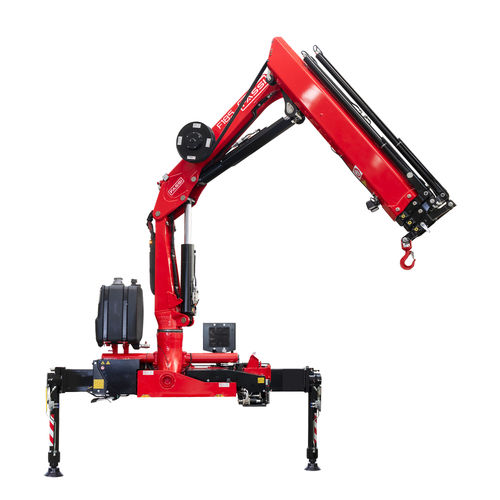

Truck-mounted crane F185A xe-dynamic series

swing-armfor constructionloading

The Fassi F185A xe-dynamic is a compact, high-performance crane designed to combine power, advanced electronic control and operational versatility. With a maximum moment of 18.3 tm (180 kNm) and a hydraulic outreach of up to 22.55 metres with jib, it offers an exceptional working range for its capacity class. The technological equipment represents the best of the xe-dynamic range: FX500 control unit, D850 digital hydraulic distributor, RCH/RCS radio controller, ADC dynamic control and flow sharing, guaranteeing smooth, safe and precise simultaneous manoeuvres. The dynamic version (.2) with double linkage, combined with the ProLink system and XP device, optimises the geometry of the booms and increases lifting capacity under critical conditions. 416° rotation with rack and pinion ensures flexibility and manoeuvrability whatever the operating context. A Fassi system that, through dedicated pilot operated check valves in conjunction with the multifunction distributor, allows smoothly, precisely and sensitively movements with less oil heating and higher speeds of operation. High performances multifunction compensated hydraulic distributor bank with digital anti-saturation system thereby ensuring a superlative multifunction and proportional operation. Coupled with the Fassi XF (Extra Fast) system, it guarantees an extraordinary fluidity and speed of action. Fassi designed, developed and patented system which, combined with the electronic systems FX500, FX900 and FX990, uses a dedicated software to decide whether the load applied to the manual extension can be lifted or not, with reference to the foreseen loads. The system also provides the evaluation of the applied load.
