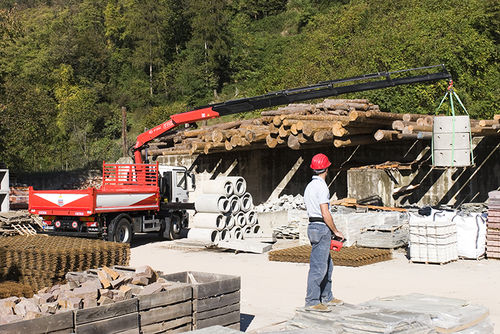

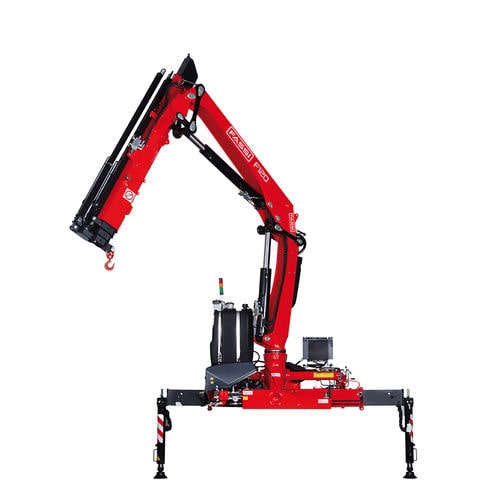

Truck-mounted crane F120B.2 e-dynamic

telescopicfor constructionforestry

The F120B.2 e-dynamic is a crane designed to combine power, versatility and precision, with a lifting capacity of up to 11.1 tm and a hydraulic outreach of up to 18.60 m with jib. An ideal solution for those looking for high performance in limited space. The electronic equipment includes the FX500 control unit, the D850 digital hydraulic distributor, the RCH/RCS radio controller and the flow-sharing system, which ensures smooth movement and optimised working times. The dynamic version (.2) is fitted with double linkage, which increases operational flexibility, as well as the ProLink system, which allows for greater working angles and increased versatility. The XP device guarantees extra power in the most demanding situations, while 410° rotation with rack and pinion adds to a package that combines reliability and high performance. High performances multifunction compensated hydraulic distributor bank with digital anti-saturation system thereby ensuring a superlative multifunction and proportional operation. Coupled with the Fassi XF (Extra Fast) system, it guarantees an extraordinary fluidity and speed of action. Fassi designed, developed and patented system which, combined with the electronic systems FX500, FX900 and FX990, uses a dedicated software to decide whether the load applied to the manual extension can be lifted or not, with reference to the foreseen loads. The system also provides the evaluation of the applied load. Temperature control device electronically controlled, thanks to the analogic temperature sensor fitted inside the oil cooler, is capable of maintaining an optimal temperature of the hydraulic system even in the most stressful condition of use.
