Truck-mounted crane M20A series

swing-armliftingloading

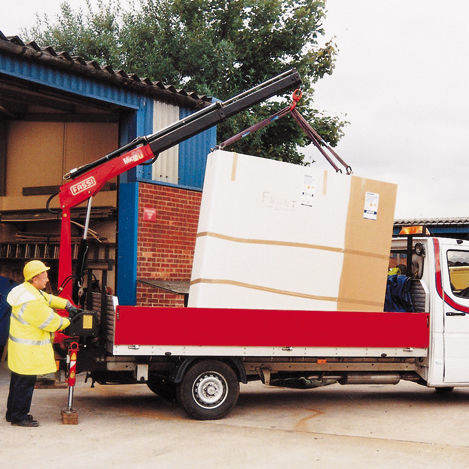

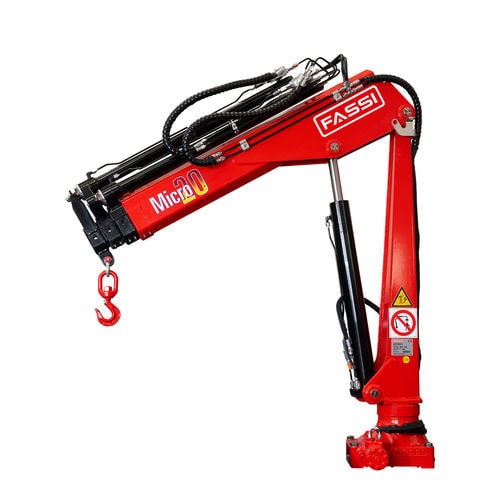

The Fassi M20A is the most compact and lightweight solution in the range, ideal for small vehicle applications where space is a fundamental factor. With a lifting capacity of up to 2.24 tm and a maximum hydraulic outreach of 4.00 metres, it guarantees versatility and practicality in everyday operations. The compact design minimises volume without compromising stability and efficiency. Equipment includes the Walvoil monobloc hydraulic distributor, pressure gauge and immediate stop devices for safe and reliable operation. Mechanically limited 325° rotation with hydraulic motor and pinion ensures smooth manoeuvres and operational precision. A security system that detects if the lateral extension supports of the outriggers are fully retracted, both for manually and hydraulically extendable outrigger supports. Linked to the height check system of the crane, at rest in the transport position, it is completed by a visualizer with visual and acoustic alarm, to install on the dashboard of the vehicle cab. A Fassi system that guarantees an exceptional extension/retraction speed of the telescopic booms, built up by a set of equally powerful independent rams, linked in series connection and activated by a single control. Special independent fixing system of the extension rams to guarantee high vertical lifting performances. Ultra high strength steel used for the construction of the Fassi structural components, with a high elastic limit, increases structural strength and resistance of the components and at the same time reduces the weight of the crane, to the benefit of the loading capacity of the vehicle which increases.
