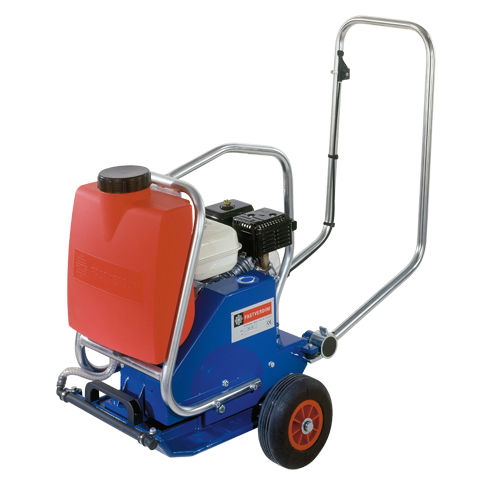

Forward travel vibratory plate SB28

gasoline enginecompacting

Description
Heavily ribbed cast-steel base with rounded edges designed to withstand a very powerful vibrating mass and strong vibration. Rounded edges prevent marking on asphalt, making the SB28 suitable for asphalt compaction and work on pavers when fitted with the correct accessories.

Accessories

• Water system for working on asphalt
• Rubber mat for interlocking/paver work

Technical specifications

• Model: SB28
• SKU: PFCSB280
• Category: Plate compactors, Forward plate, Series SB - SD
• Operating weight (with extensions): 74 kg
• Working width (with extensions): 400 mm
• Working length: 520 mm
• Centrifugal force: 14.2 kN
• Frequency: 80 Hz
• Working speed: 20 m/min
• Maximum penetration: 22 cm (8.7 in)
• Transport wheels: included
• Available engines: Honda petrol GX160; Kohler Lombardini petrol CH270
• Engine power: 4.0 kW (5.5 hp) or 5.5 kW (7.5 hp)
• Starting system: Recoil start
• Fuel tank capacity: 2.5 L
• Stage V compliance: Yes
