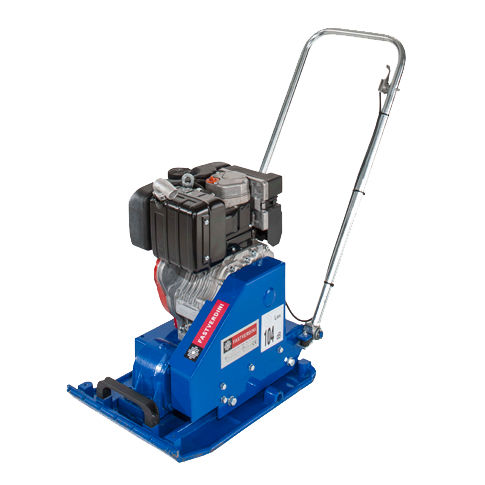

Forward travel vibratory plate SD28

compacting

Description
Heavily ribbed cast-steel base with rounded edges designed to withstand a high vibrating mass and strong vibration. Rounded edges reduce marking on asphalt, making the unit suitable for asphalt finishing operations. Accessories available: water system for working on asphalt or rubber mat for paving blocks (anti-marking).

Technical specifications

• Model: SD28
• Operating weight kg (* with extensions): 92
• Working width mm (* with extensions): 400
• Working length mm: 520
• Centrifugal force kN: 14.2
• Frequency Hz: 80
• Working speed m/min: 20
• Maximum penetration cm - in: 22 – 8.7
• Transport wheels: supplied
• Engine: Hatz diesel 1B20; Kohler Lombardini diesel 15LD225 (variants)
• Engine power kW (HP): 3.4 (4.6); 3.5 (4.8)
• Starting system: recoil starter
• Fuel tank capacity L: 3
• Stage V: No, Yes (variant)
