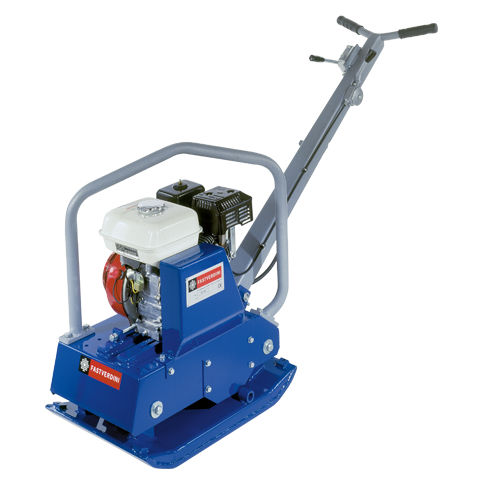

Reversible vibratory plate AR48

gasoline enginecompacting

Description
Mechanically reversible plate compactor with a sheet steel plate and double-bottom base. Option to fit extension plates to increase the working width. Suitable for general compaction tasks; compatible with accessories for asphalt or interlocking pavers.

Accessories

• Water spray system for working on asphalt
• Rubber mat for interlocking pavers

Technical specifications (table)
Model: AR48
Operating weight kg (* with extensions): 100 / 110*
Working width mm (* with extensions): 400 / 560*
Working length mm: 600
Centrifugal force kN (kg): 25
Frequency Hz: 80
Working speed m/1’: 20
Maximum penetration cm - in: 30 – 11.8
Transport wheels: included
Engine: Honda petrol GX200
Engine power kW (Hp): 4.8 (6.5)
Starting: Recoil
Fuel tank capacity Lt: 3.6
Stage V: Yes

Features / technical specifications

• Model: AR48
• Operating weight kg (* with extensions): 100 / 110*
• Working width mm (* with extensions): 400 / 560*
• Working length mm: 600
• Centrifugal force kN (kg): 25
• Frequency Hz: 80
• Working speed m/1’: 20
• Maximum penetration cm - in: 30 – 11.8
• Transport wheels: included
• Engine: Honda petrol GX200
• Engine power kW (Hp): 4.8 (6.5)
• Starting: Recoil
• Fuel tank capacity Lt: 3.6
• Stage V: Yes
