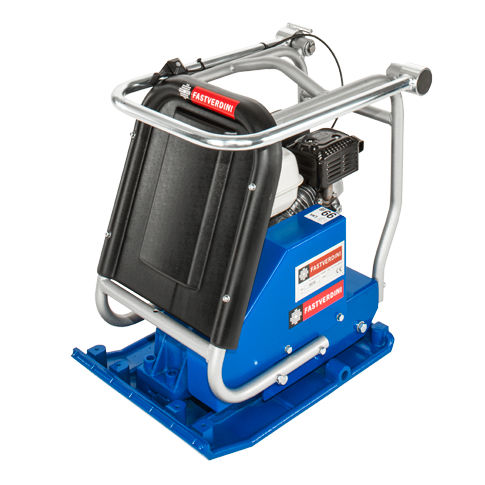

Forward travel vibratory plate SD28LX

compacting

Description
Plate compactor built with the same compaction specifications as the SB/SD series, specifically engineered to minimise hand–arm vibrations for the operator. The vibration-reduction system lowers hand–arm vibration levels by up to approximately 50%, improving operator comfort during extended use. Suitable for asphalt, paving stones and general soil compaction tasks.

Specifications (table)
Model: SB28LX, SD28LX
Operating weight kg (with extensions): 74, 95
Working width mm (with extensions): 400
Working length mm: 520
Centrifugal force kN (kg): 14.2
Frequency Hz: 80
Working speed m/min: 20
Maximum penetration cm - in: 22 – 8.7
Transport wheels: included
Engine: Hatz diesel 1B20; Kohler Lombardini diesel 15LD225
Engine power kW (Hp): 3.4 (4.6); 3.5 (4.8); 4.0 (5.5)
Starting: Recoil
Fuel tank capacity L: 2.5, 3
Stage V: No, Yes

Accessories

• Water system for working on asphalt
• Rubber mat for interlocking pavers

Features / technical specifications

• Models: SB28LX, SD28LX
• Operating weight (with extensions): 74 kg, 95 kg
• Working width (with extensions): 400 mm
• Working length: 520 mm
• Centrifugal force: 14.2 kN
• Frequency: 80 Hz
• Working speed: 20 m/min
• Maximum penetration: 22 cm – 8.7 in
• Transport wheels: included
• Available engines: Hatz diesel 1B20; Kohler Lombardini diesel 15LD225
• Engine power: 3.4 kW (4.6 Hp); 3.5 kW (4.8 Hp); 4.0 kW (5.5 Hp)
• Starting: Recoil
• Fuel tank capacity: 2.5 L / 3 L
• Stage V compliance: available (No, Yes)
