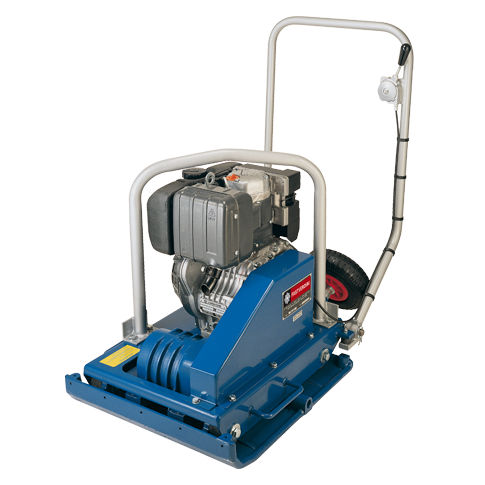

Forward travel vibratory plate DA32

compacting

Description
Cast-steel plate with rounded side edges of 28 mm diameter to prevent marking of surfaces; these features are achievable only with cast-steel plates. The cast-steel base is designed to withstand a very powerful vibrating mass and deliver strong compaction performance suitable for heavy-duty site work.

Accessories

• Water system for working on asphalt
• Rubber mat for interlocking pavers

Technical specifications

• Model: DA32
• Code / SKU: PFCAD32H, PFCAD32Y
• Operating weight kg (* with extensions): 132
• Working width mm (* with extensions): 520
• Working length mm: 570
• Centrifugal force kN (kg): 22.5
• Frequency Hz: 100
• Working speed m/1’: 20
• Maximum penetration cm - in: 36 – 14.2
• Transport wheels: included
• Engine: Hatz diesel 1B20; Yanmar diesel L48
• Engine power kW (Hp): 3.4 (4.6); 3.5 (4.8)
• Starting: Recoil starter
• Fuel tank capacity L: 2.4; 3
• Stage V: No; Yes
