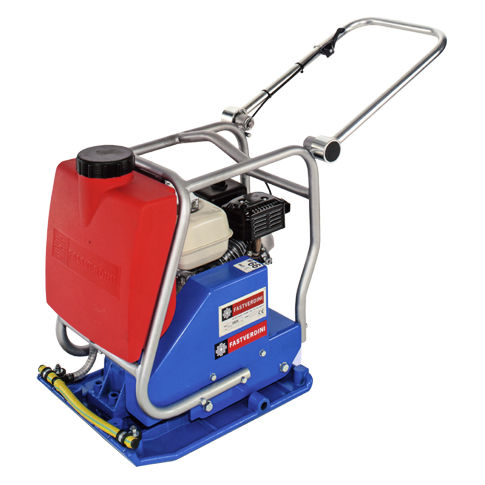

Forward travel vibratory plate AC32LX

gasoline enginecompacting

Overview
Compactor built with the same compaction specifications as the AC - DA Series, specifically designed to minimise hand-arm vibrations for the operator; the system can reduce these vibrations by up to 50%.

Accessories

• Water system for working on asphalt
• Rubber mat for interlocking pavers

Technical specifications

• Model: AC32LX
• Operating weight (kg, with extensions): 107
• Working width (mm, with extensions): 520
• Working length (mm): 570
• Centrifugal force (kN): 22.5
• Frequency (Hz): 100
• Working speed (m/min): 20
• Maximum penetration: 33 cm (13 in)
• Transport wheels: included
• Engine: Honda petrol GX160
• Engine power (kW (Hp)): 4.0 (5.5)
• Starting: Recoil
• Fuel tank capacity (L): 3.6
• Stage V: Yes
