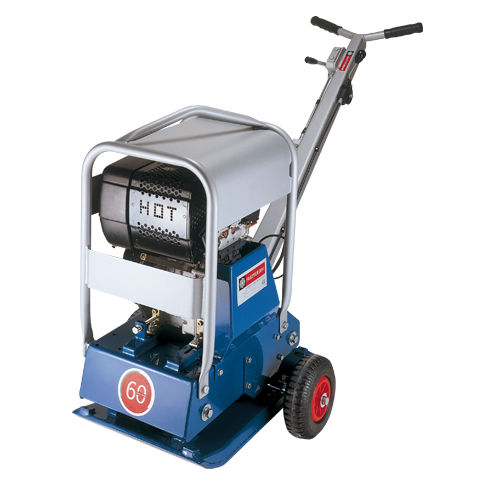

Reversible vibratory plate AR52

compacting

Description
Mechanically reversible plate compactor designed for compaction of asphalt, interlocking pavers and granular soils. Steel sheet base with double bottom and optional extension plates to increase working width. Transport wheels supplied for easier handling. Stage V compliant engine options available.

Engine variants

• Hatz diesel 1B20
• Yanmar diesel L48N

Accessories

• Water system for working on asphalt
• Rubber mat for interlocking pavers

Specifications (table)
Model: AR52
Operating weight kg (* with extension plates): 130 / 140*
Working width mm (* with extension plates): 400 / 560*
Working length mm: 600
Centrifugal force kN (kg): 25
Frequency Hz: 80
Working speed m/min: 20
Maximum penetration cm - in: 30 – 11.8
Transport wheels: included
Engines: Hatz diesel 1B20; Yanmar diesel L48N
Engine power kW (Hp): 3.4 (4.6); 3.5 (4.8)
Starting system: recoil starter
Fuel tank capacity L: 2.4, 3
Emission stage: Stage V

Features / technical specifications

• Model: AR52
• Code (SKU): PCOYAR51 (additional variant: PCOHAR53)
• Operating weight: 130 / 140 kg (with extension plates)
• Working width: 400 mm (560 mm with extension plates)
• Working length: 600 mm
• Centrifugal force: 25 kN
• Frequency: 80 Hz
• Working speed: 20 m/min
• Maximum penetration: 30 cm – 11.8 in
• Transport wheels: included
• Available engines: Hatz diesel 1B20 / Yanmar diesel L48N
• Engine power: 3.4 kW (4.6 Hp) or 3.5 kW (4.8 Hp)
• Starting: recoil starter
• Fuel tank capacity: 2.4 L or 3 L
• Emission compliance: Stage V
