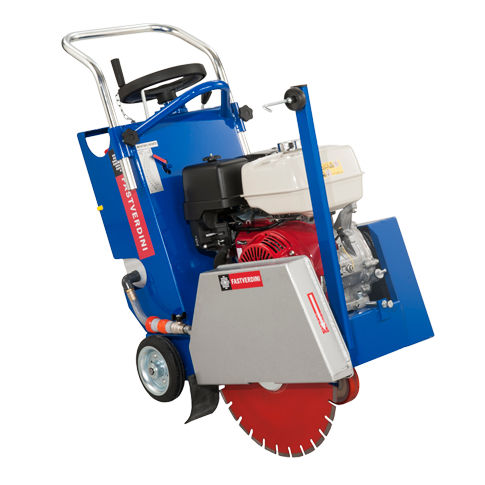

Concrete cutter LM 500

Description
Compact saw for cutting asphalt and concrete, designed for easy handling and equipped with a depth indicator and a 30 L water tank.

Engine variants

• Honda petrol GX390
• Kohler Lombardini petrol CH440

Specifications
Model: LM 500
Model codes: LM 500, PFSELM15, PFSELM15K
Max blade diameter mm: 500
Max cutting depth mm: 185
Operating weight kg: 95
Engine: Honda petrol GX390; Kohler Lombardini petrol CH440
Engine power kW (Hp): 9.6 (13.0); 9.9 (13.5)
Starter: Recoil
Water tank capacity L: 30
Feed: Push
Depth adjustment: Handwheel
Direction corrector: –
Stage V: Yes

Features / technical notes

• Model: LM 500
• Codes: PFSELM15, PFSELM15K
• Max blade diameter: 500 mm
• Max cutting depth: 185 mm
• Operating weight: 95 kg
• Available engines: Honda GX390 (9.6 kW / 13.0 Hp), Kohler Lombardini CH440 (9.9 kW / 13.5 Hp)
• Starter: recoil
• Water tank: 30 L
• Feed: push
• Depth adjustment: handwheel
• Stage V: yes
