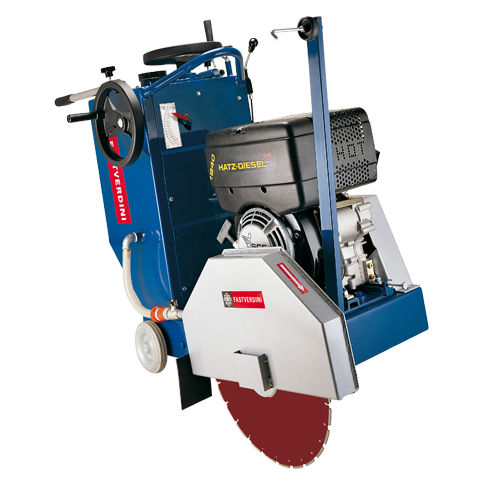

Concrete cutter DL10 series

Product description
Asphalt and concrete cutting saw designed for controlled cutting operations on roads and civil works. Available as DL10 450 and DL10 500, it features cutting power and stability, a 50-litre steel cooling water tank and a depth index. Standard feed is push; semi-automatic feed available on request.

Technical specifications (table)
Model: DL10 450, DL10 500
Model codes: DL 10, PFDL10L0, PFSDLS00, PFSDLSHZ, PSDL10Y0
Max blade diameter mm: 450, 500
Max cutting depth mm: 165, 185
Operating weight kg: 175, 185
Engine: Hatz diesel 1B40; Kohler Lombardini diesel KD15350; Kohler Lombardini diesel KD15440; Yanmar diesel L100
Engine power kW (HP): 5.5 (7.5); 7.4 (10.1); 8.1 (11.0)
Starting: Recoil start
Water tank capacity L: 50
Work feed: Push / semi-automatic
Depth adjustment: Handwheel
Steering corrector: –
Stage V: Yes

Features / technical specifications

• Available models: DL10 450 and DL10 500
• Model codes: DL 10, PFDL10L0, PFSDLS00, PFSDLSHZ, PSDL10Y0
• Maximum blade diameter: 450 mm or 500 mm
• Maximum cutting depth: 165 mm (450) / 185 mm (500)
• Operating weight: 175 kg (450) / 185 kg (500)
• Engine options: Hatz diesel 1B40; Kohler Lombardini KD15350; Kohler Lombardini KD15440; Yanmar L100
• Engine power: 5.5 kW (7.5 HP) / 7.4 kW (10.1 HP) / 8.1 kW (11.0 HP) depending on version
• Starting: Recoil start
• Cooling water tank: 50-litre steel tank
• Feed: Push or semi-automatic (on request)
• Depth adjustment: Handwheel
• Steering corrector: Not provided
• Stage V compliance: Yes
